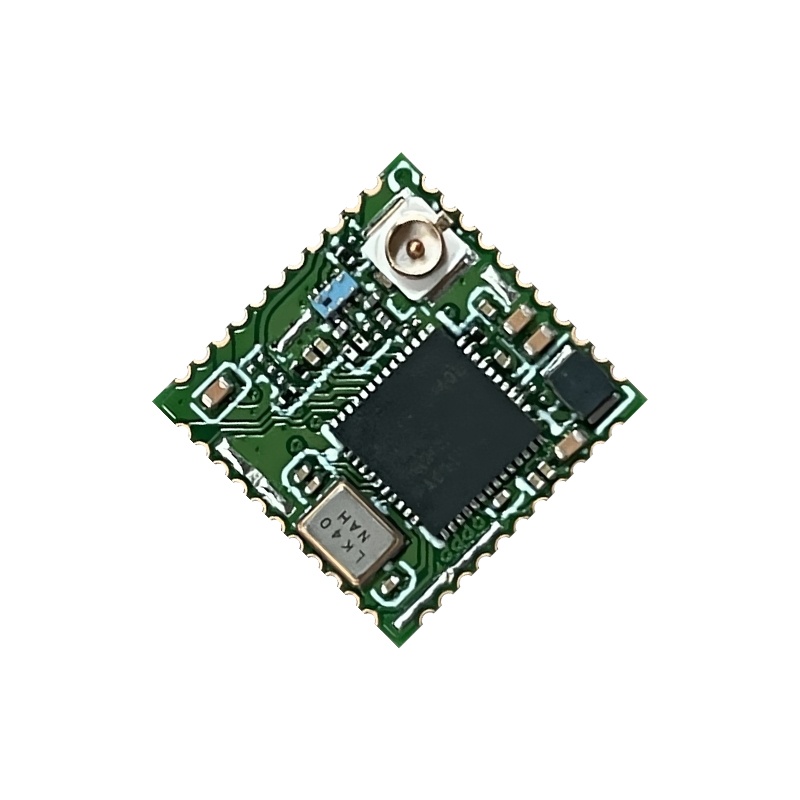

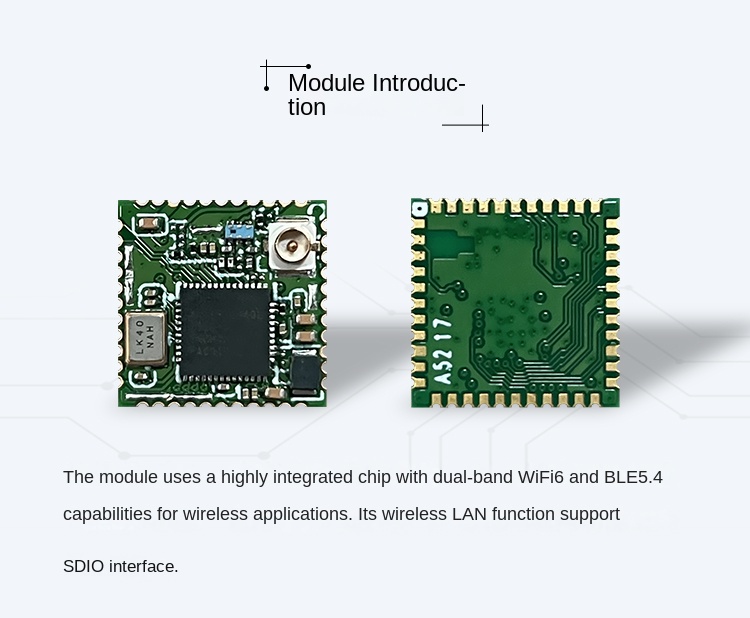

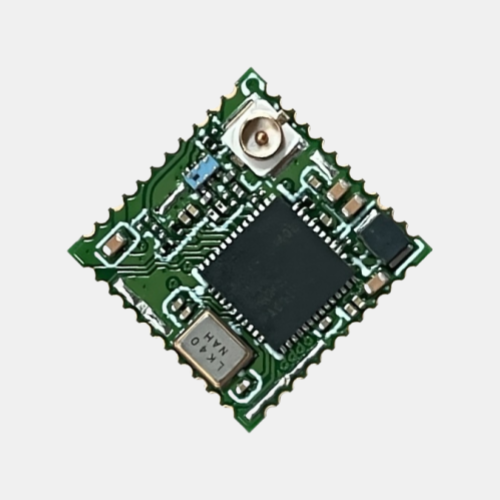

The MSWXB1212-SDIO is a high-integration wireless module featuring dual-band Wi-Fi 6 (2.4G/5G) and Bluetooth 5.4, ideal for compact and power-sensitive applications. Both Wi-Fi and BLE functions are supported via the SDIO interface, ensuring simplified system integration and high data throughput.

Key Features

Wi-Fi 6 + BLE 5.4 combo: Efficient dual-protocol connectivity

SDIO interface: Unified communication for both Wi-Fi and Bluetooth

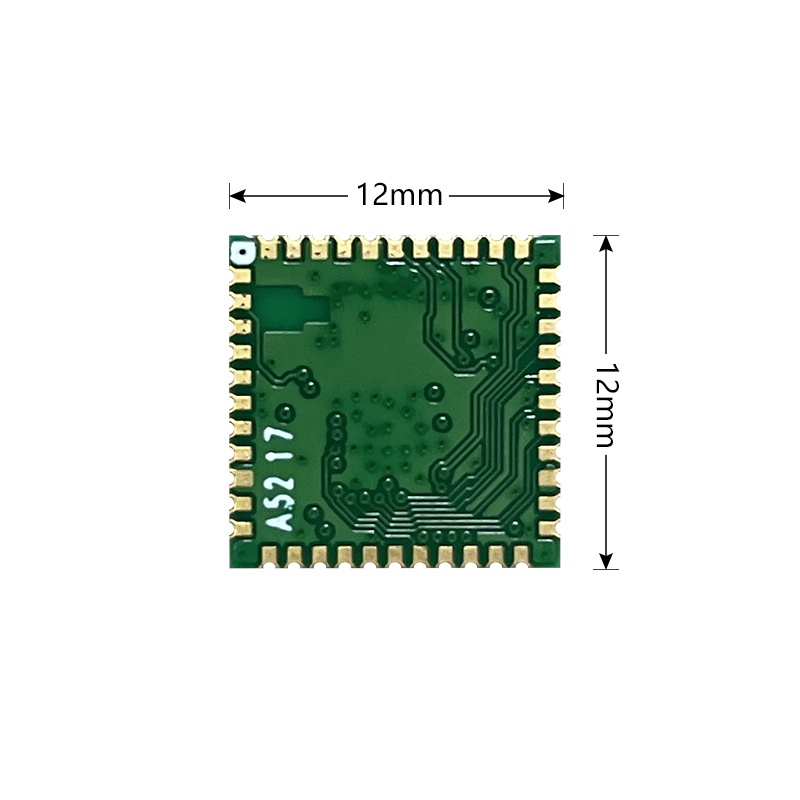

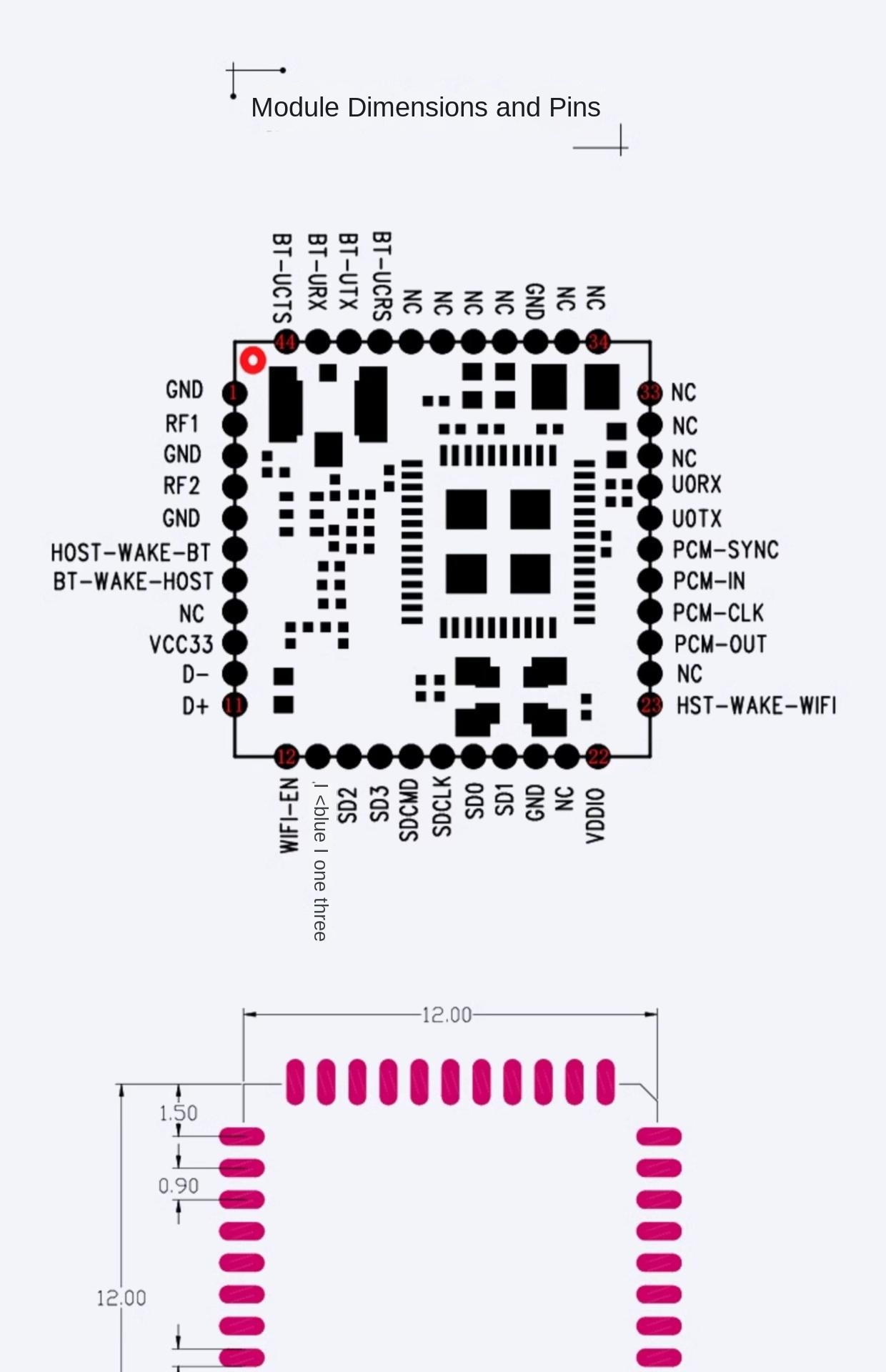

Compact form factor: 12 × 12 × 2.1 mm (±0.3 mm), suitable for embedded devices

Low power consumption: Optimized for energy-sensitive designs

Stable performance:
– Operating temperature: 0°C to +70°C
– Storage temperature: -20°C to +80°C

Applications
Ideal for smart terminals, IoT devices, industrial controllers, and wearables where space, performance, and power efficiency are critical.

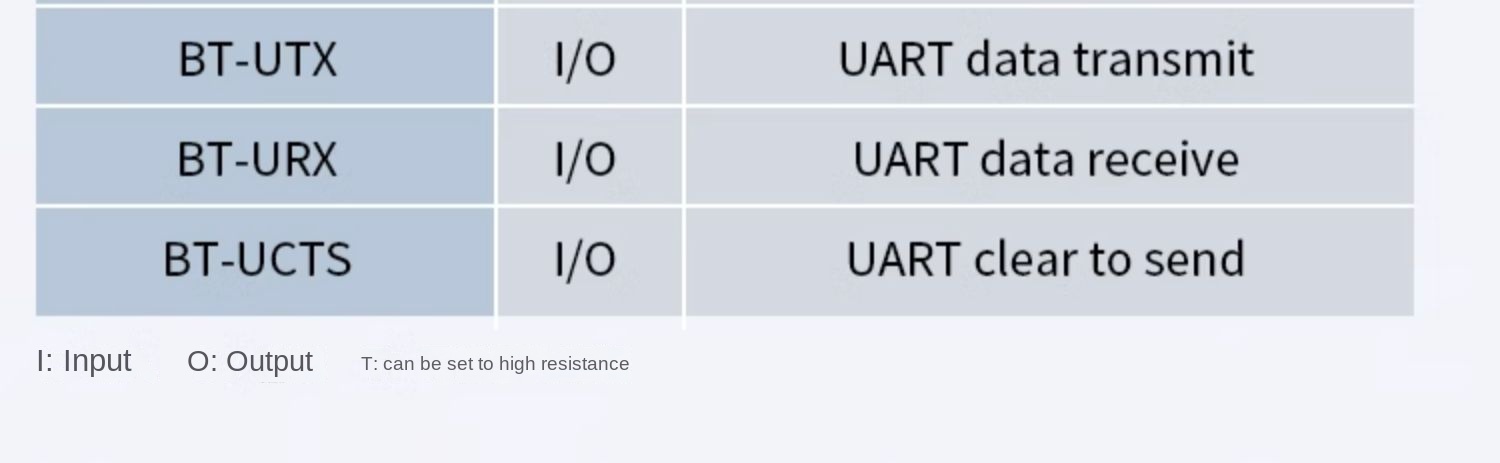

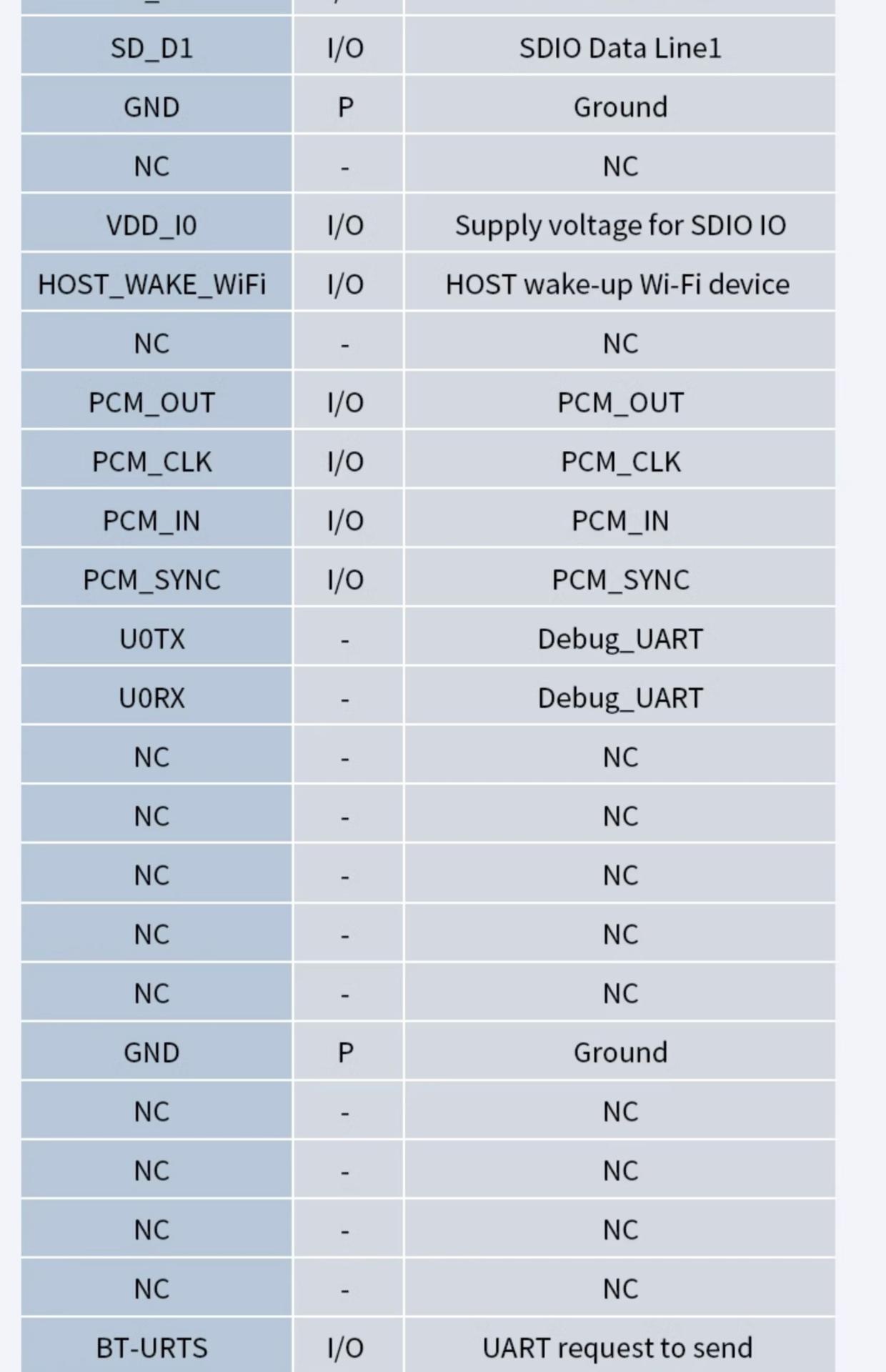

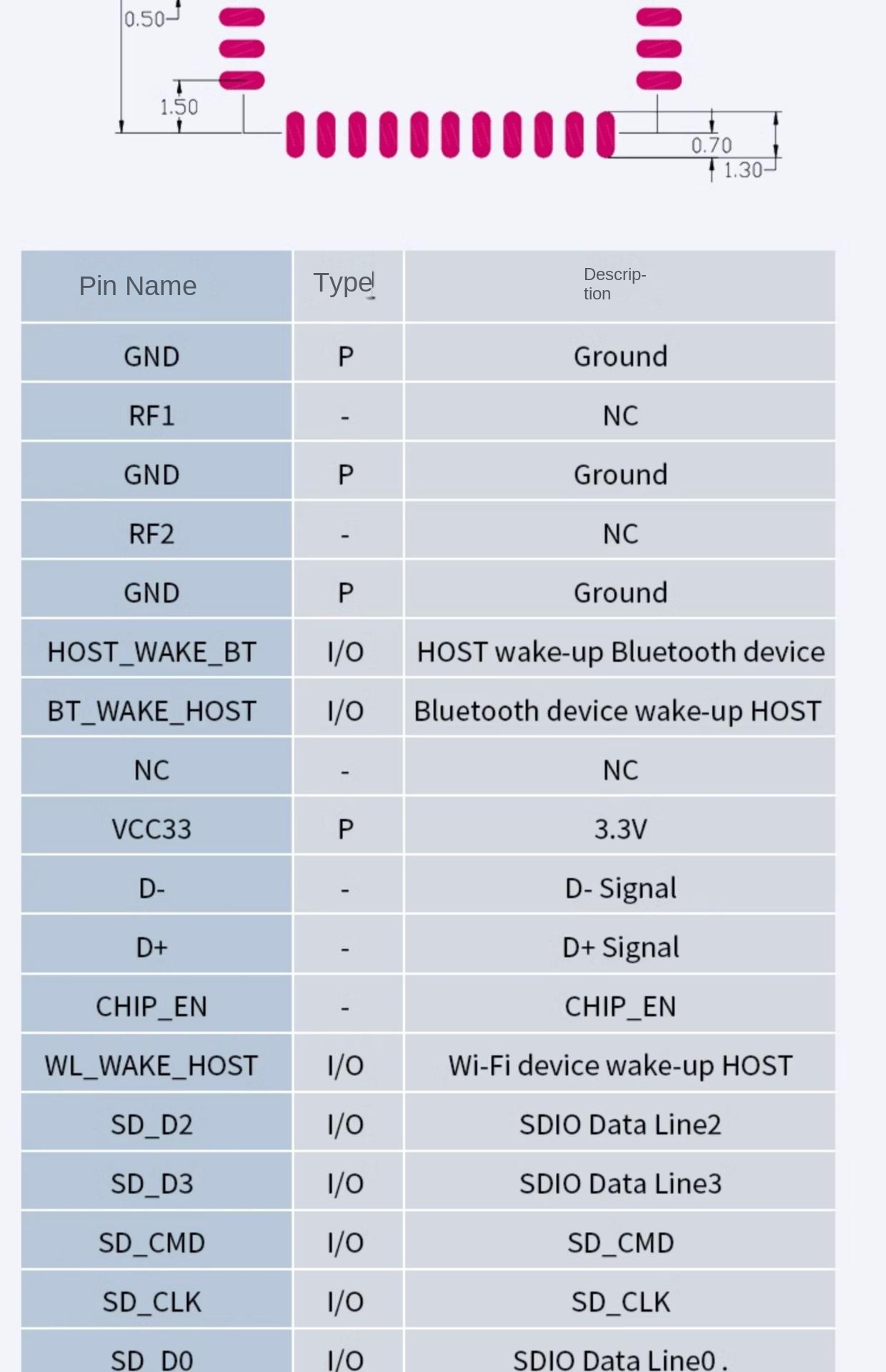

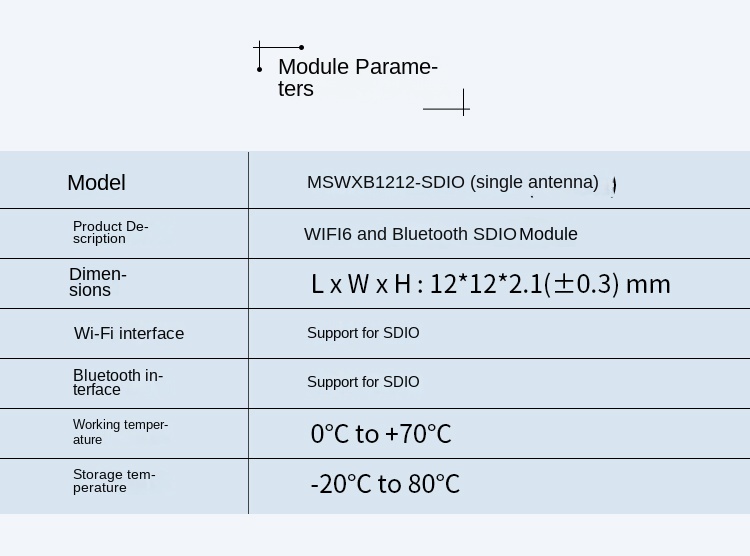

Product Details：
