MS58-2020D68U4

Ultra-low 40 μA power consumption is ideal for battery-powered devices
Integrated 5.8 GHz radar SoC with high consistency and reliability
Compact design using a mini planar antenna for space efficiency
Motion detection based on Doppler radar for human and object sensing
Versatile use in smart door locks, night lights, cameras, and PIR replacements

This module supports customization; please contact us for pricing information.

Product description

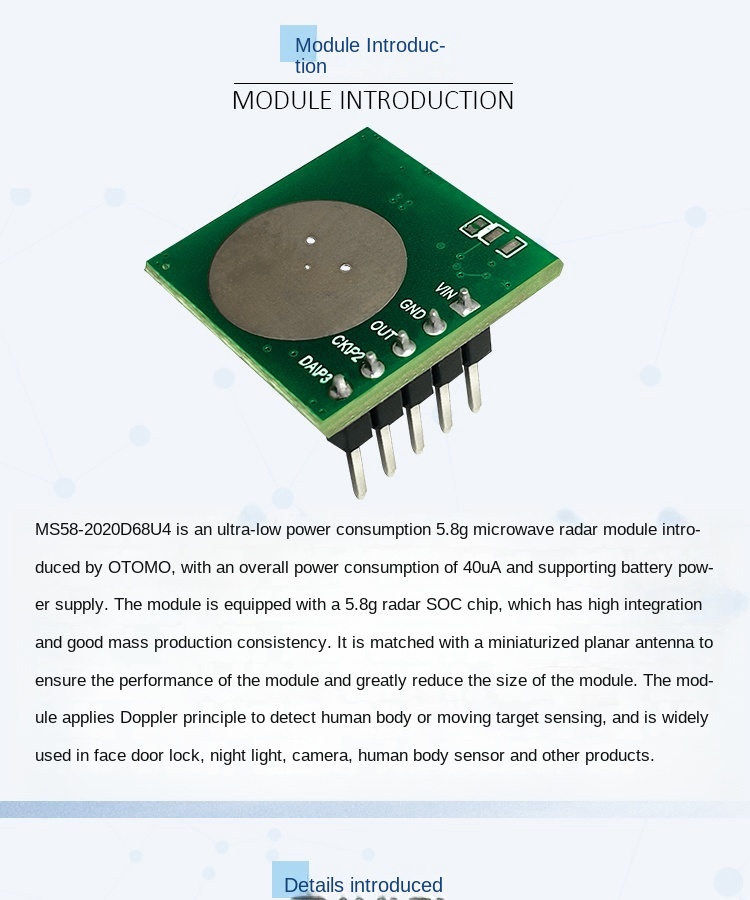

The MS58-2020D68U4 is a compact 5.8 GHz microwave radar module designed for ultra-low-power motion sensing applications. Ideal for battery-powered devices, it delivers stable performance in a highly integrated form.

Key Features

Ultra-low power consumption: Only 40μA, perfect for battery operation

Built-in 5.8G radar SoC: High integration with excellent batch consistency

Compact design: Mini planar antenna reduces size without sacrificing performance

Motion detection: Based on Doppler radar principles for human/moving object sensing

Versatile application: Widely used in smart door locks, night lights, cameras, and PIR alternatives

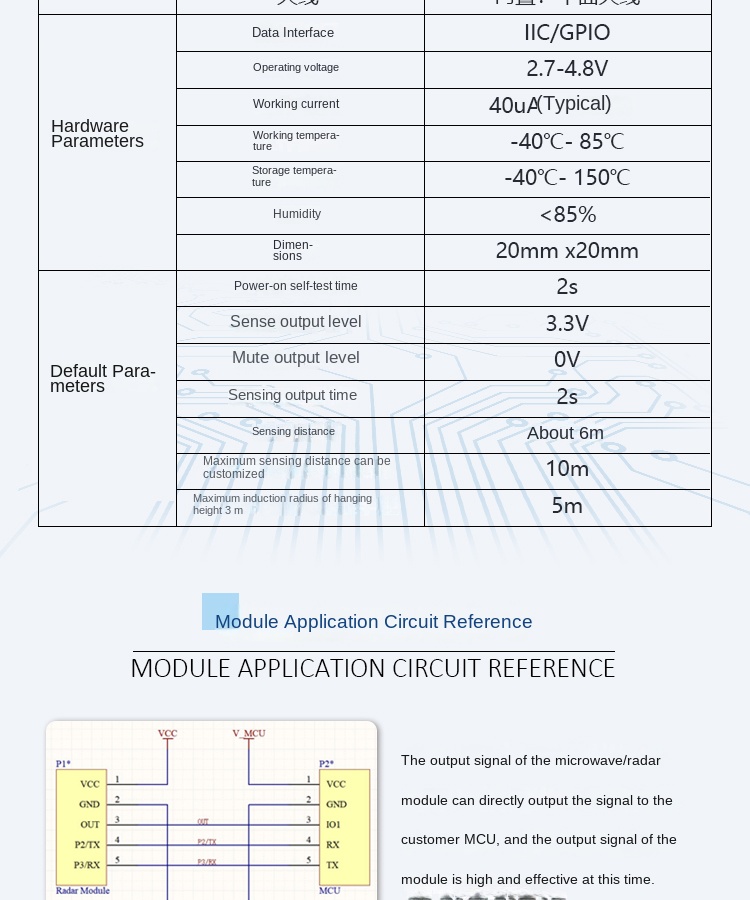

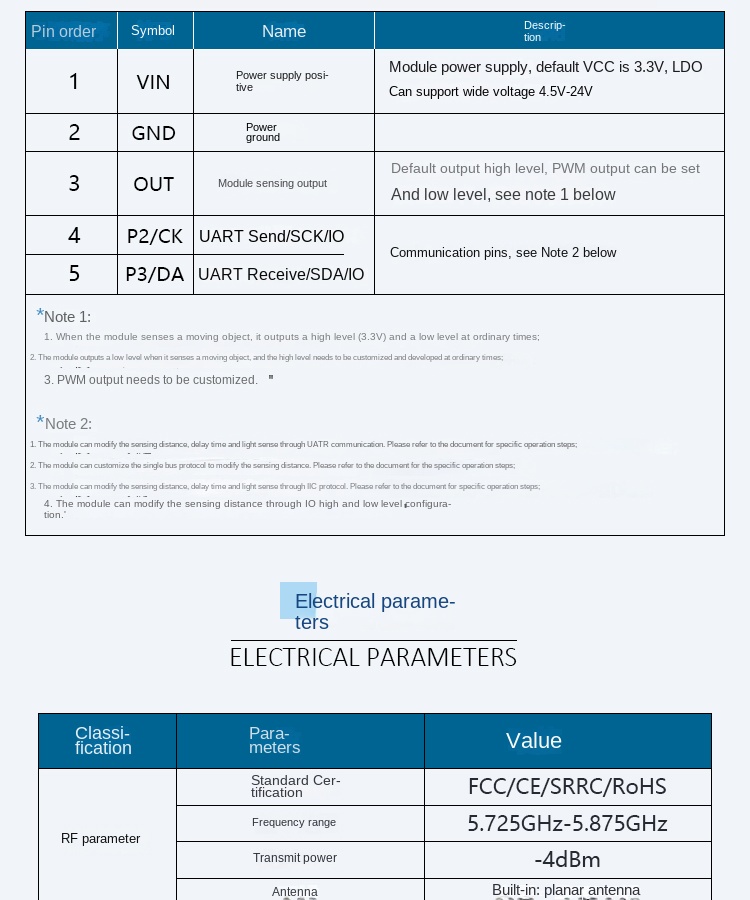

Product Parameters

Classification	Parameters	Value
RF	Standard Certification	FCC/CE/SRRC/RoHS
	Frequency range	5.725GHz-5.875GHz
	Transmit power	-4dBm
	Antenna	Built-in: planar antenna

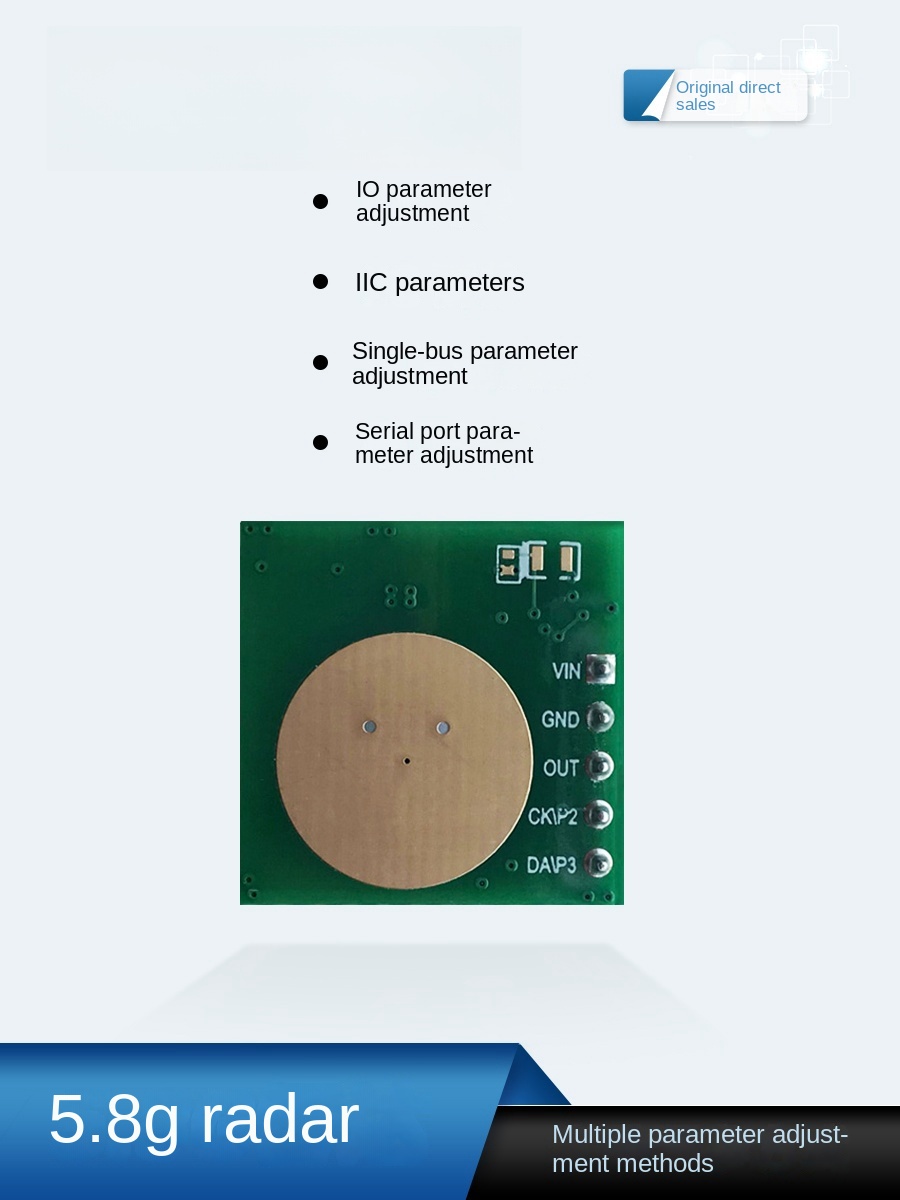

Hardware	Data Interface	IIC/GPIO
	Operating voltage	2.7-4.8V
	Working current	40uA(Typical)
	Working temperature	-20℃-85°C
	Storage temperature	-40℃C-150°C
	Humidity	<85%

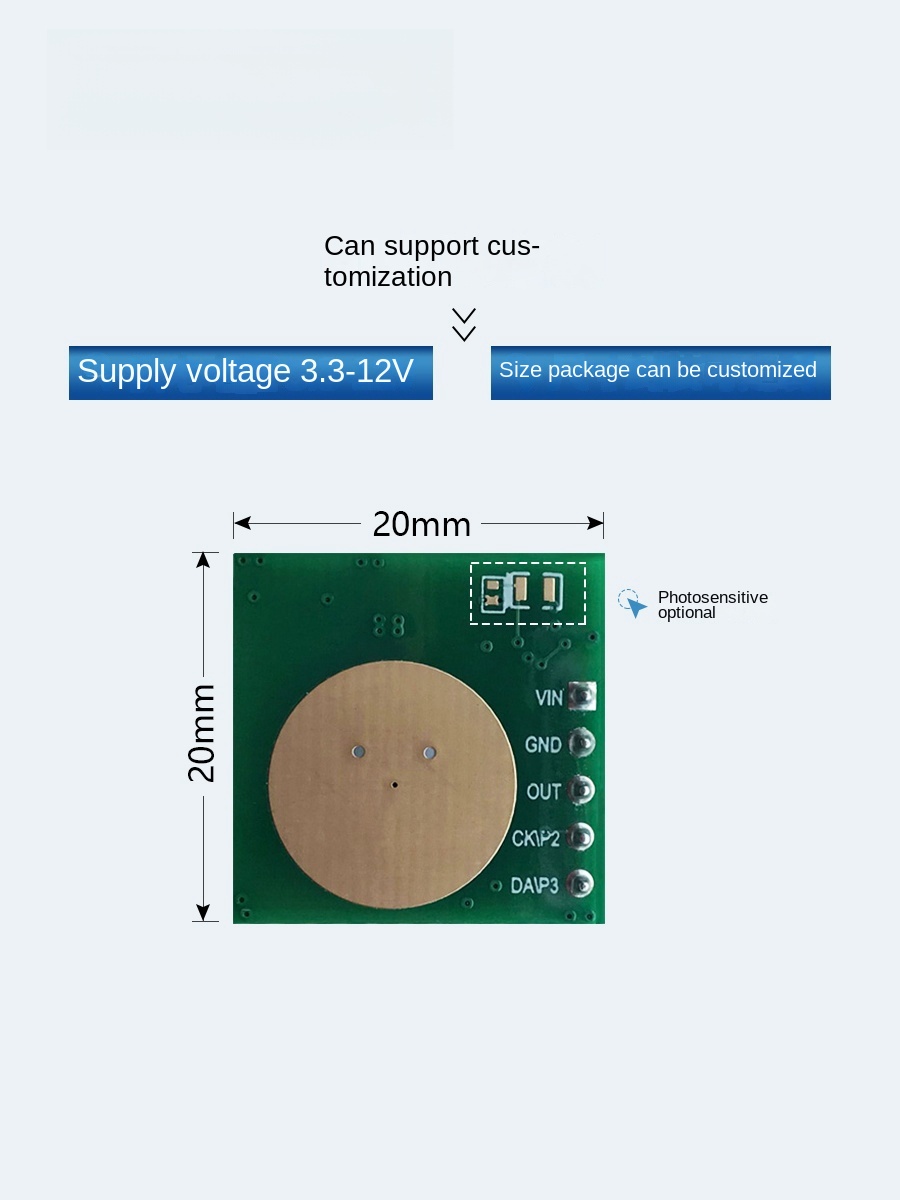

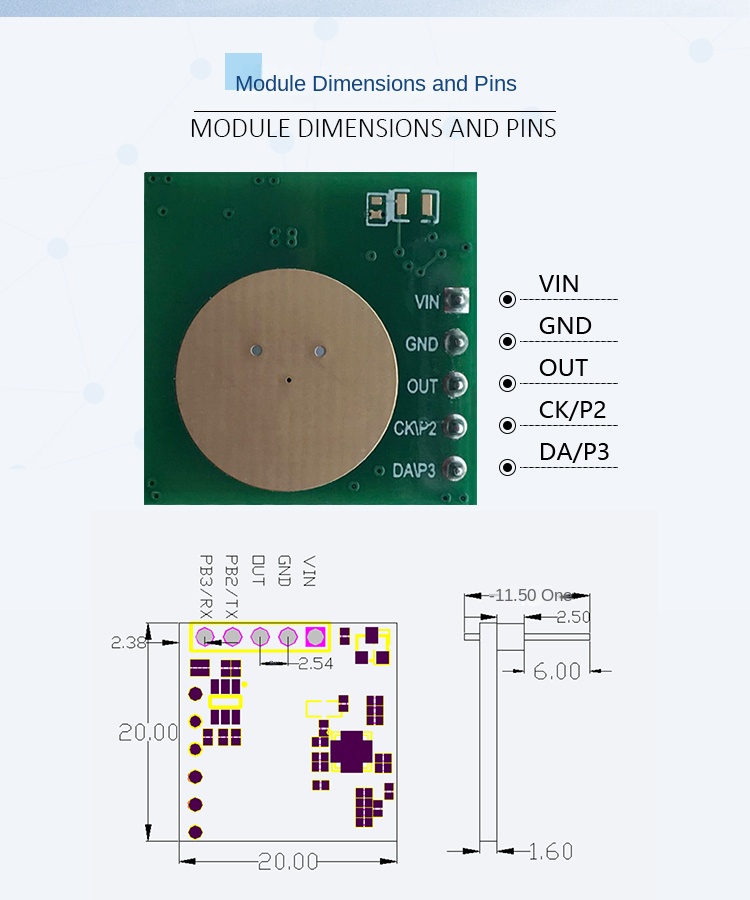

Default	Dimensions	20mmx20mm
	Power on self-test time	2S
	Sense output level	3.3V
	Mute output level	OV
	Sensing output time	2s
	Sensing distance	About 6m
	The maximum sensing distance can be customized	10m
	Maximum induction radius of hanging height 3 m	5m
