LX-SWF502-2

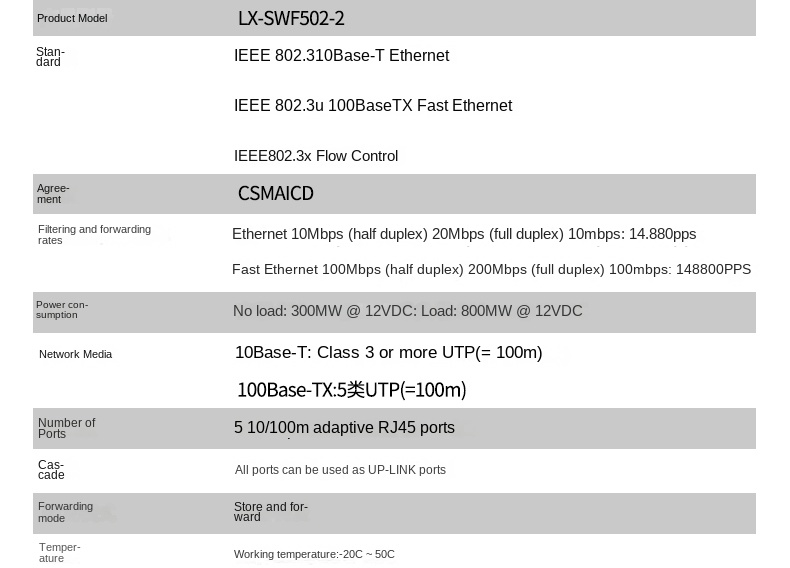

| Product Model | LX-SWF502-2 |
| Standard | IEEE 802.310Base-T Ethernet IEEE 802.3u 100BaseTX Fast Ethernet IEEE802.3x Flow Control |
| Agree ment | CSMAICD |
| Filtering and forwarding rates | Ethernet 10Mbps (half duplex)20Mbps (full duplex)10mbps: 14.880pps Fast Ethernet 100Mbps (half duplex)200Mbps (full duplex)100mbps: 148800PPS |
| Power Consumption | No load: 300MW @ 12VDC: Load: 800MW @ 12VDC |
| Network Media | 10Base-T: Class 3 or more UTP(=100m)100Base-TX:5类UTP(=100m) |

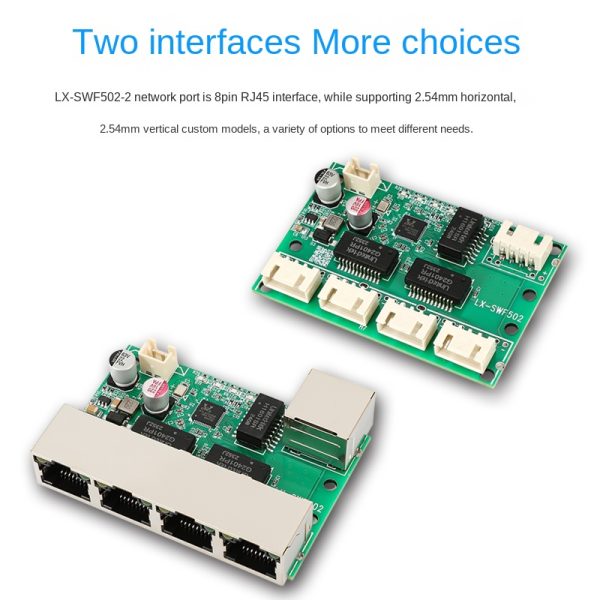

| Number of Ports | 5 10/100m adaptive RJ45 ports |
| Cascade | All ports can be used as UP-LINK ports |
| Forwarding mode | Store and forward |
| lemperature | Working temperature:-20C~50C |
Product description
Product Introduction：

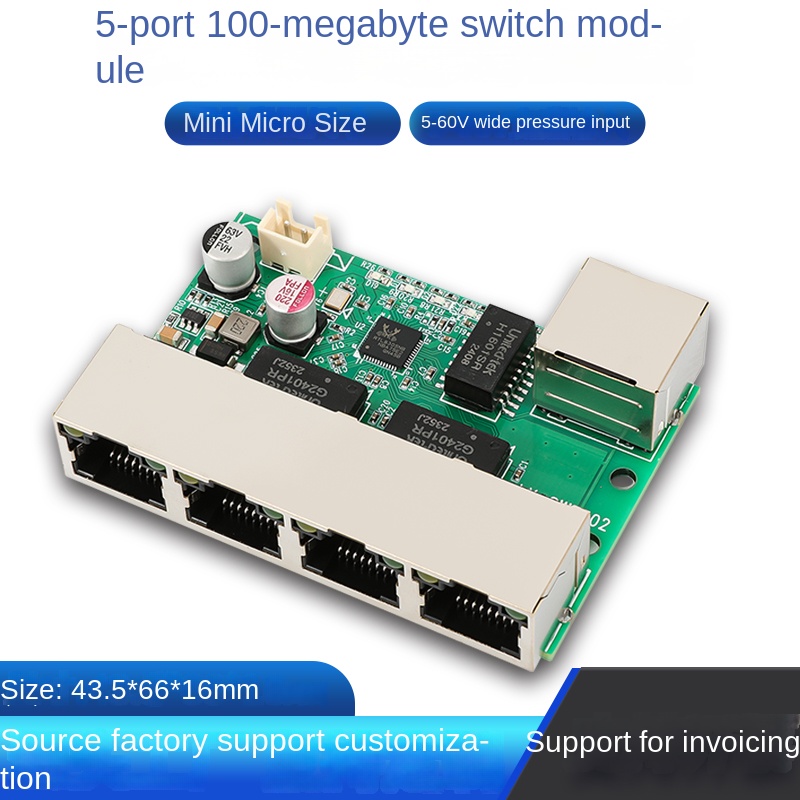

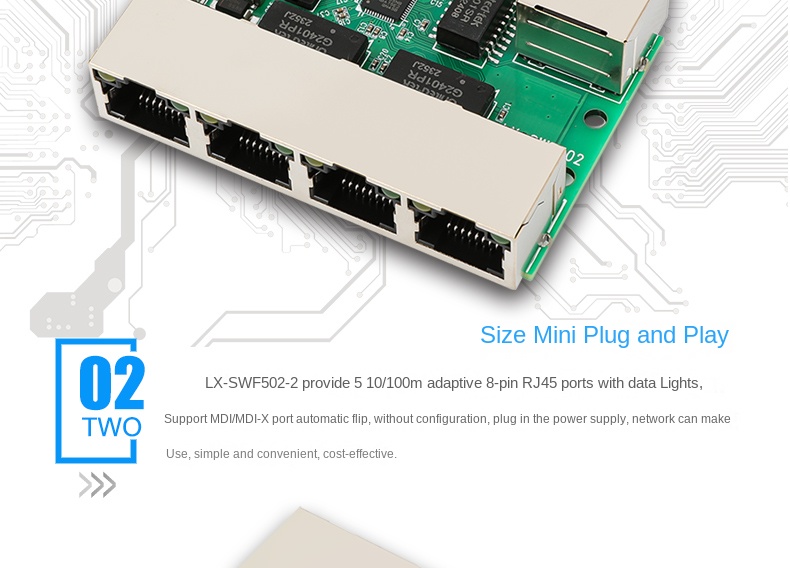

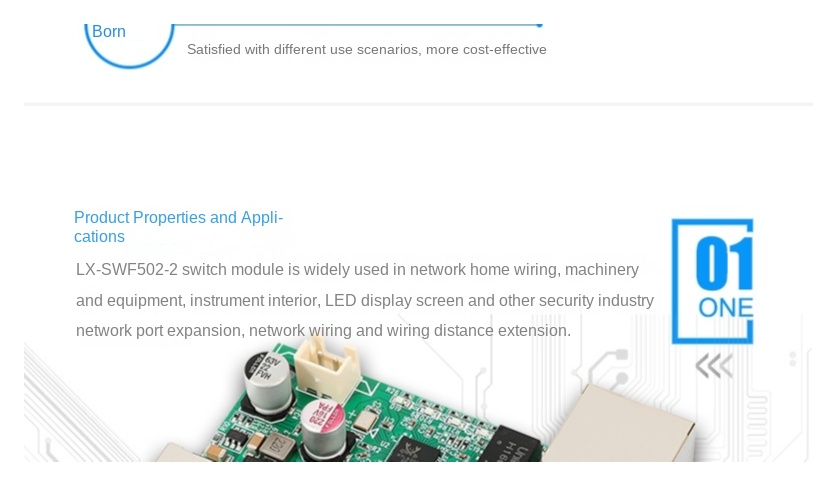

The LX-SWF502-2 is a compact 5-port 10/100Mbps Ethernet switch module designed for network expansion in home wiring systems, embedded devices, LED displays, and security applications. It supports IEEE 802.3 standards and features plug-and-play functionality with auto MDI/MDI-X support—no configuration required. All five RJ45 ports are adaptive and can serve as UP-LINK ports, operating in store-and-forward mode for efficient data transmission.
Key specs include:
Backplane bandwidth: 1Gbps
Power consumption: 300mW (unloaded), 800mW (fully loaded) @12VDC
Operating temperature: -20°C to 50°C
Storage temperature: -40°C to 80°C

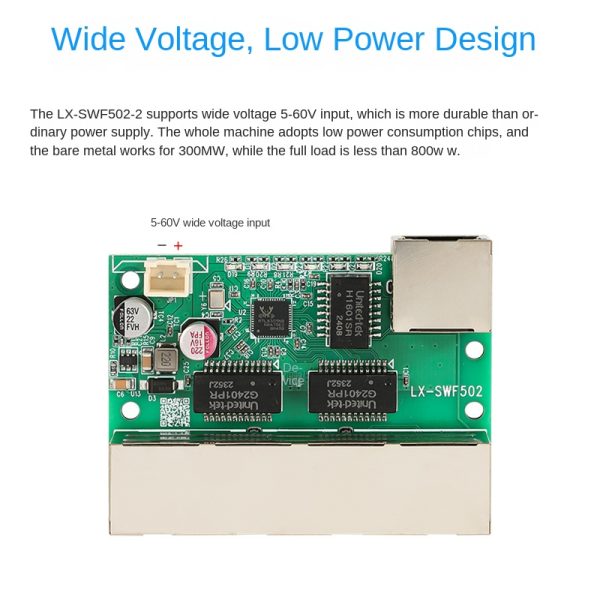

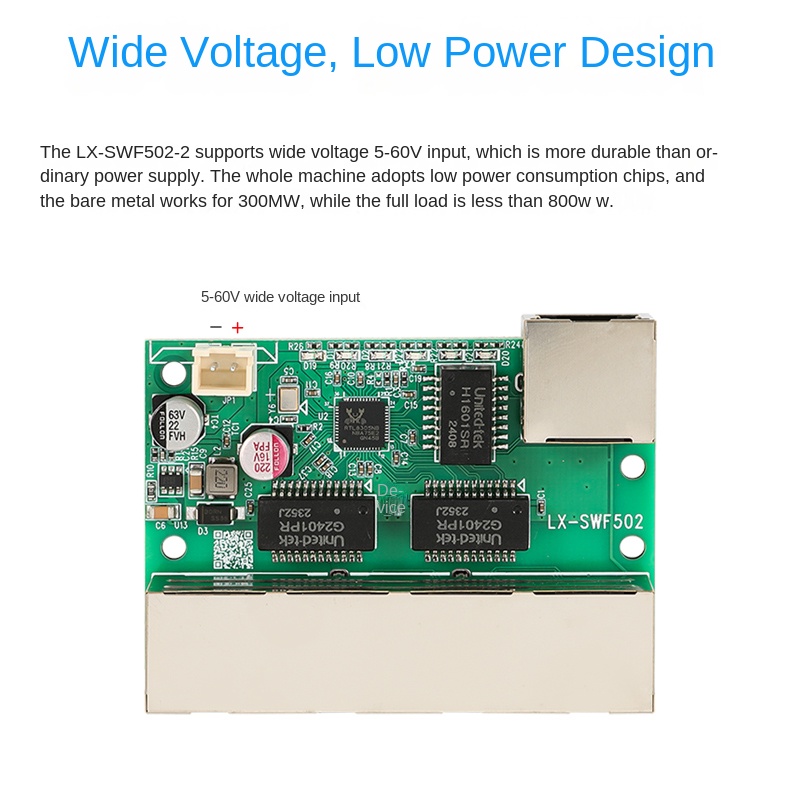

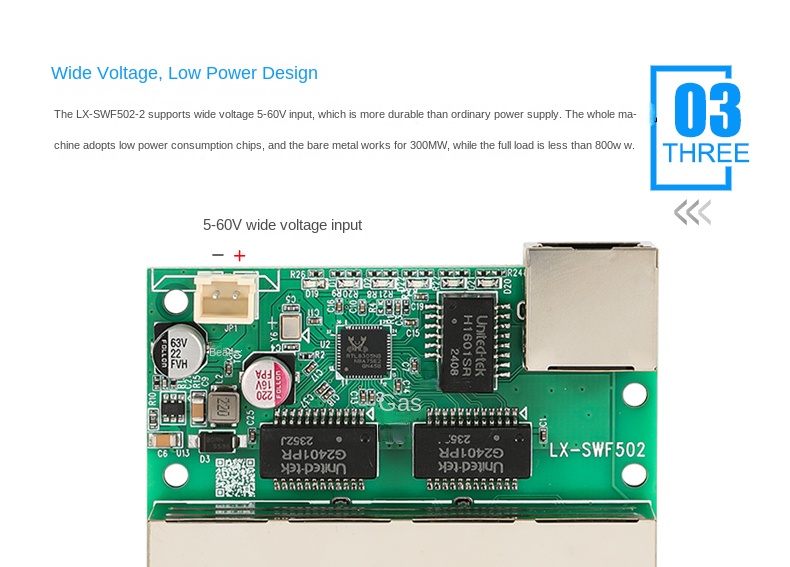

Input power: DC 5–60V / 1A via 2P terminal block
Indicator lights: Power and data status LEDs

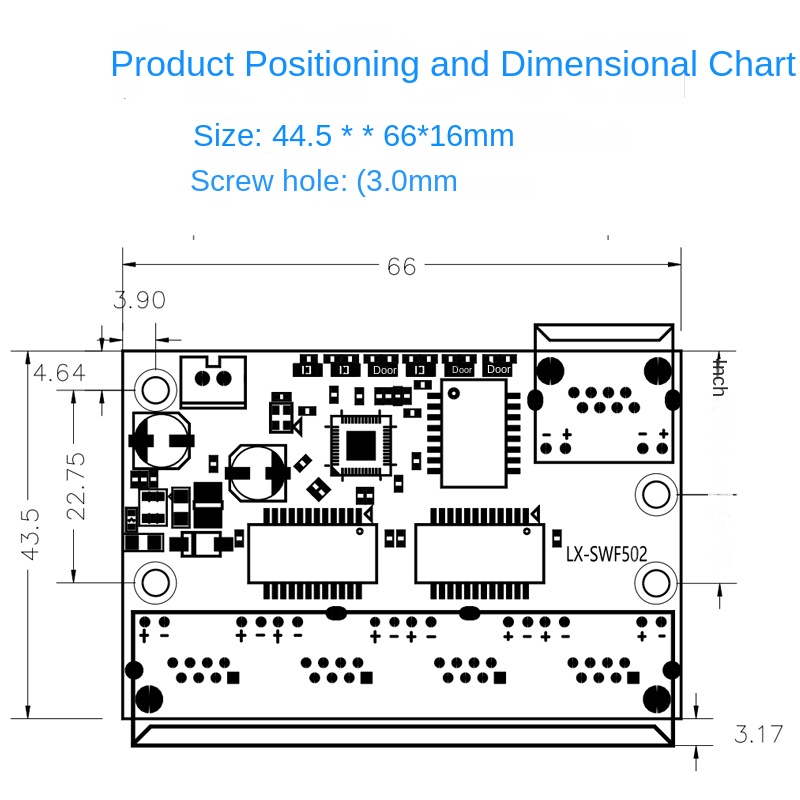

Dimensions: 66 × 43.5 × 16mm
This module provides a reliable and cost-effective solution for flexible Ethernet connectivity in industrial and embedded environments.
Product Details：
