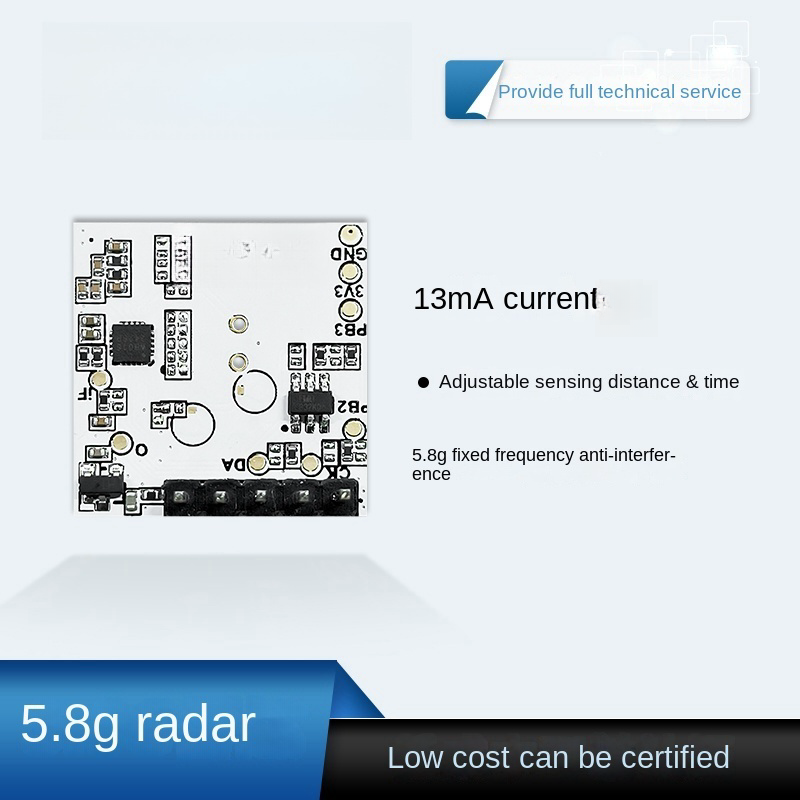

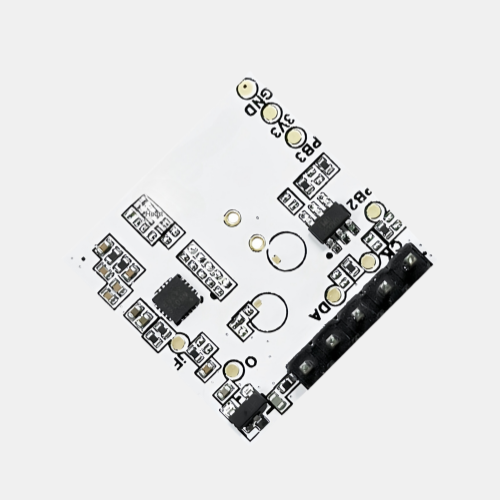

MS58-2020D13M4

Cost-effective and certified solution for large-scale lighting projects
Dual operating modes for standard or ultra-low power applications
High integration with a single-chip SoC for stable performance
Compact design featuring a built-in mini planar antenna
Optimized for lighting products such as bulbs, tubes, panels, and wall lamps

This module supports customization; please contact us for pricing information.

Product description

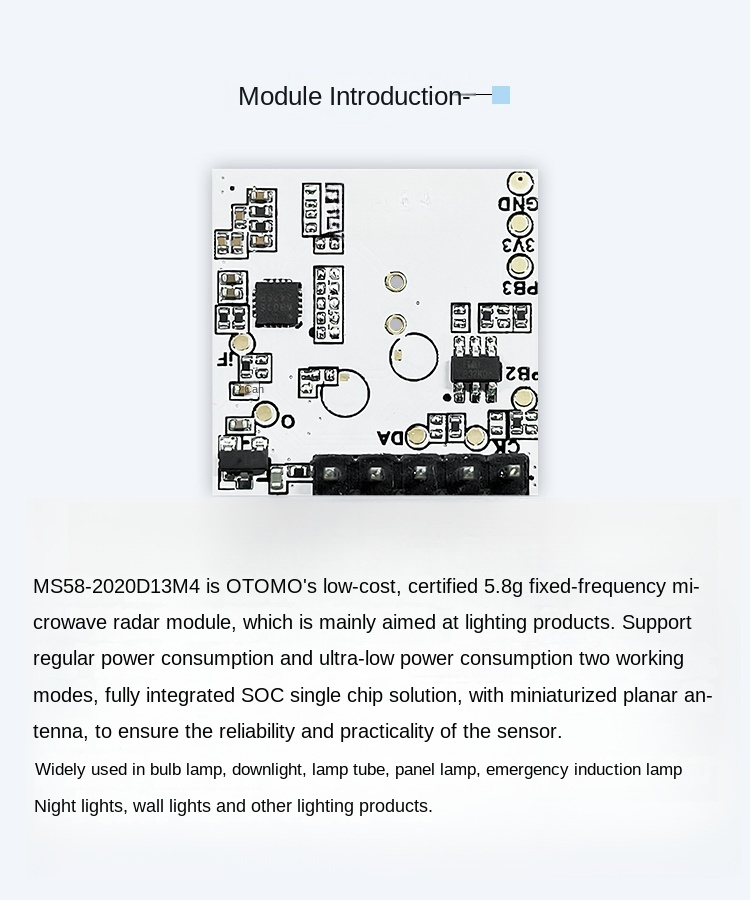

The MS58-2020D13M4 is a cost-effective 5.8 GHz microwave radar module designed specifically for lighting applications. It features fixed-frequency operation, is fully certified, and supports dual working modes—standard and ultra-low power—for flexible integration.

Key Features

Low-cost and certified: Ideal for large-scale commercial lighting

Dual-mode support: Switch between standard and ultra-low power modes as needed

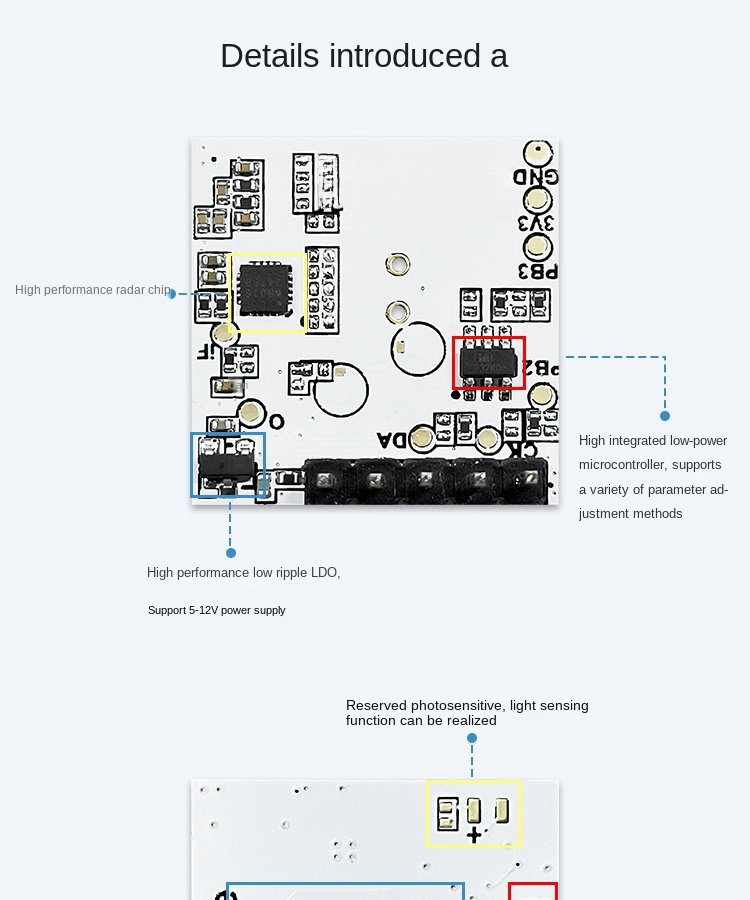

High integration: Single-chip SoC design ensures stable performance

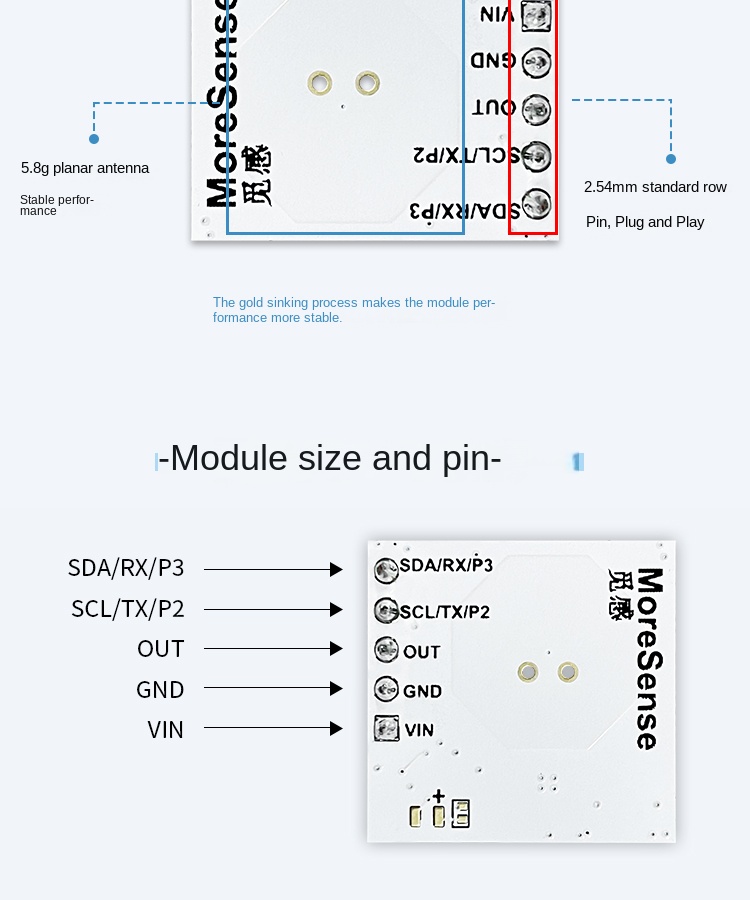

Compact design: Built-in mini planar antenna for space-saving installations

Lighting-optimized: Perfect for bulbs, tubes, panels, emergency lights, wall lamps, and more

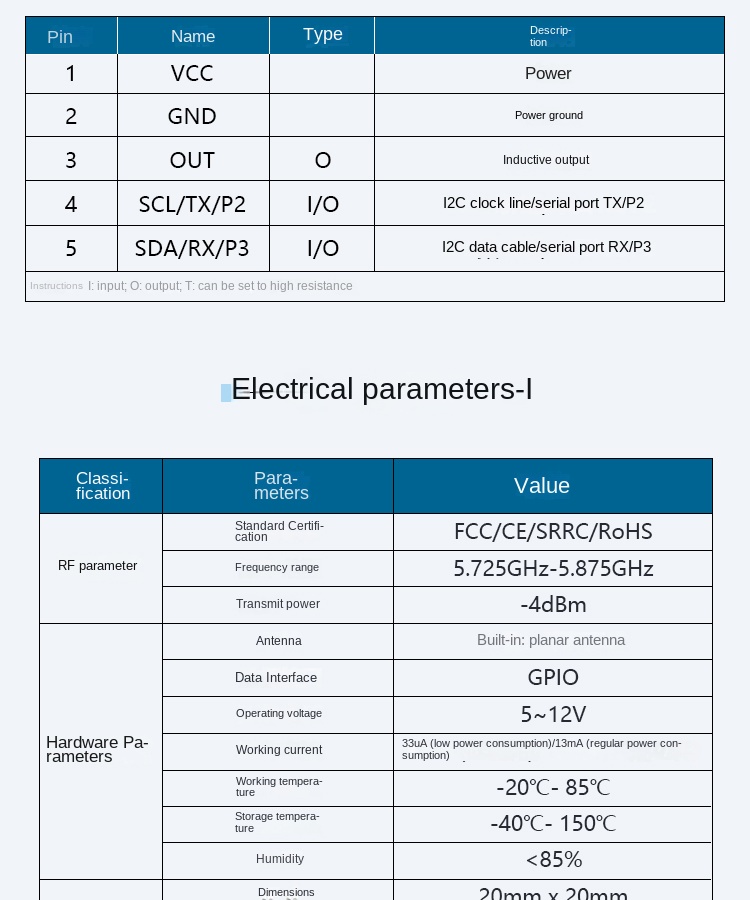

Product Parameters

Classification	Parameters	Value
RF	Standard Certification	FCC/CE/SRRC/RoHS
	Frequency range	5.725GHz-5.875GHz
	Transmit power	-4dBm
Hardware	Antenna	Built-in: planar antenna

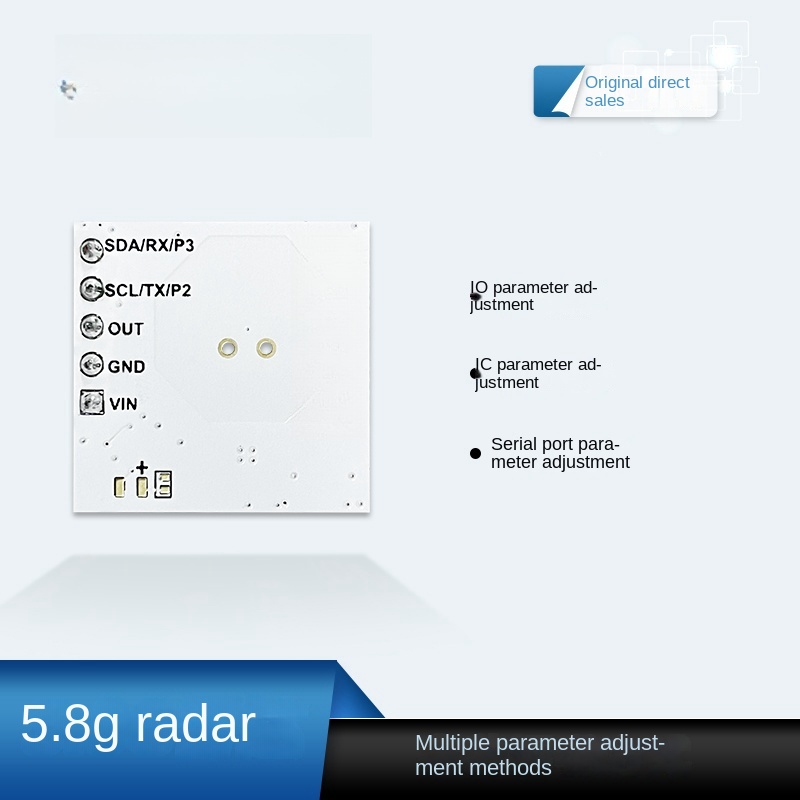

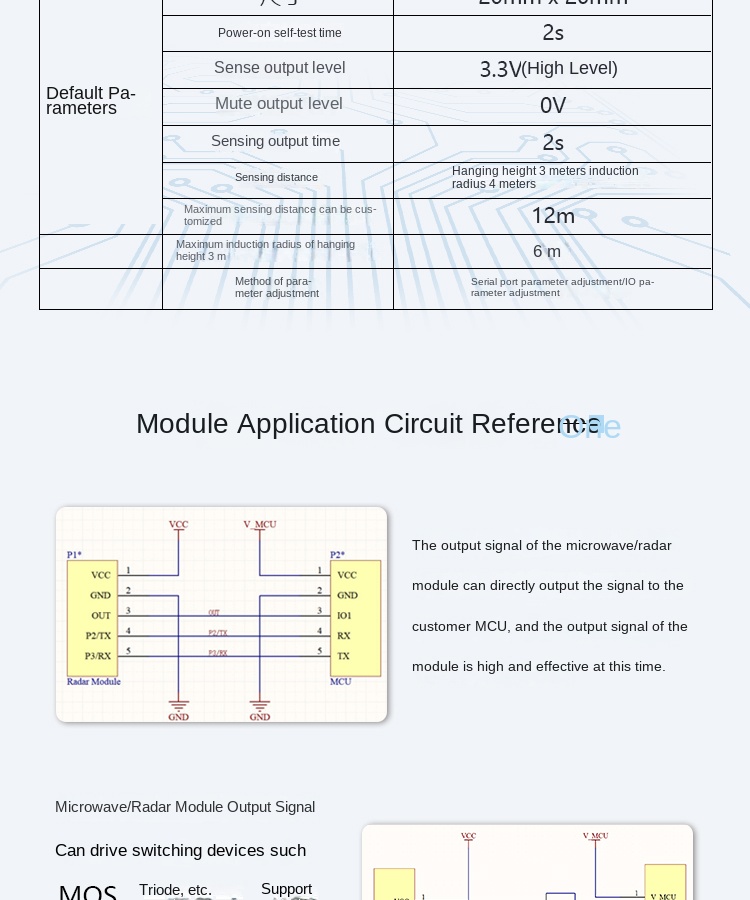

	Data Interface	GPIO
	Operating voltage	5~12V
	Working current	33uA (low power consumption)/13mA(regular poer consumpton)
	Working temperature	-20℃-85℃
	Storage temperature	-40℃-150℃
	Humidity	<85%

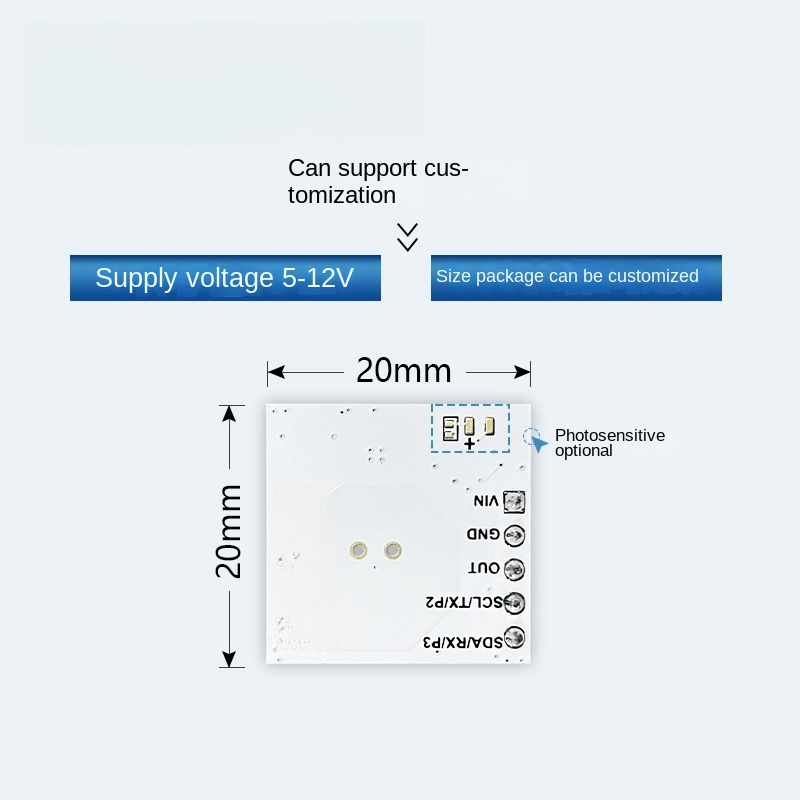

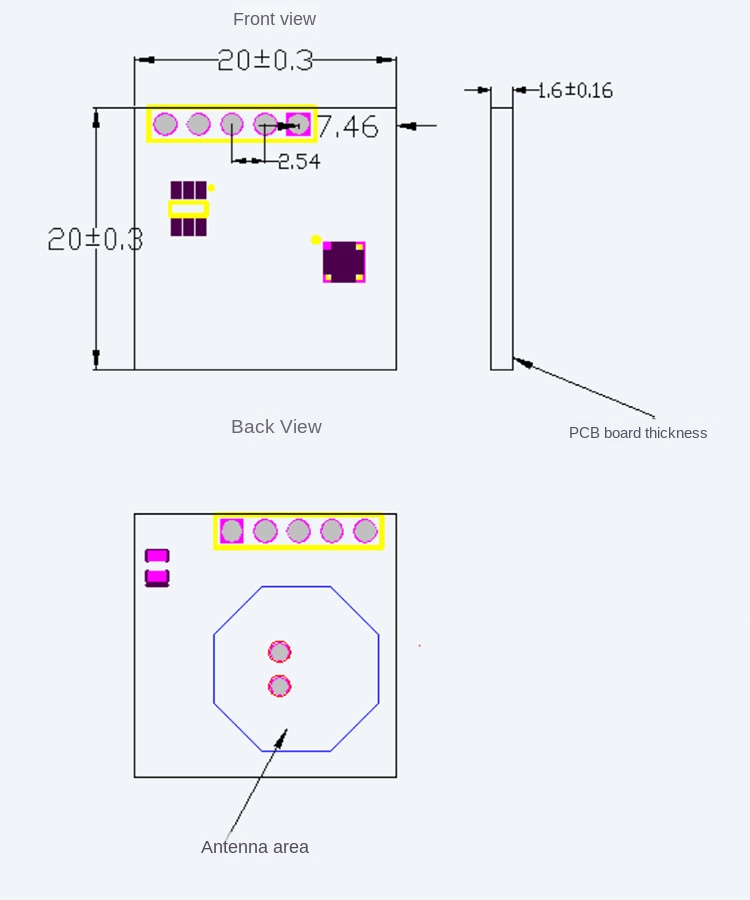

Default	Dimensions	20mmx20mm
	Power-on self-test time	2S

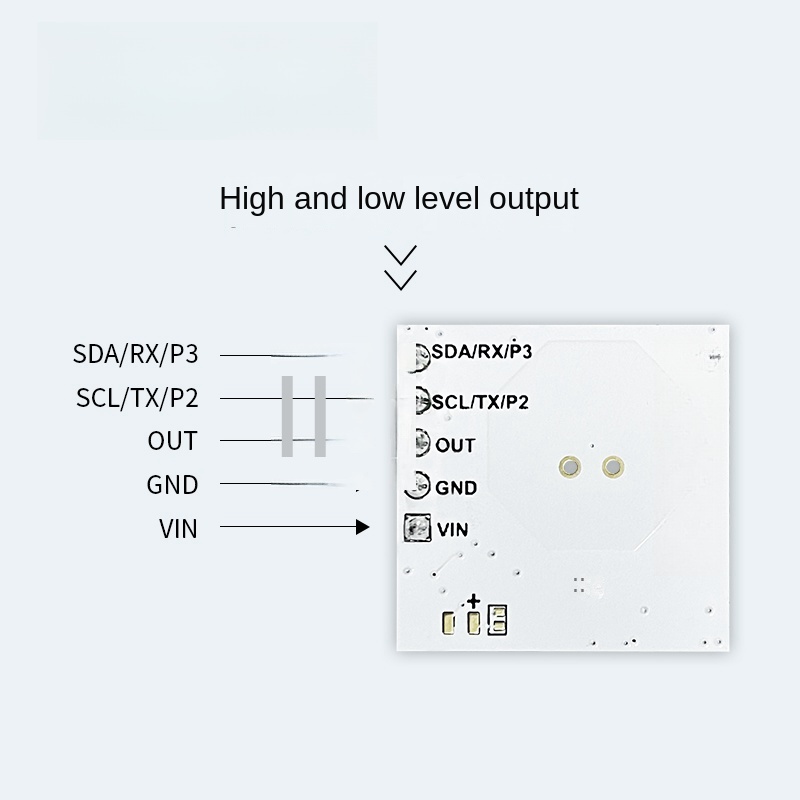

	Sense output level	3.3V(High Level)
	Mute output level	OV
	Sensing output time	2s

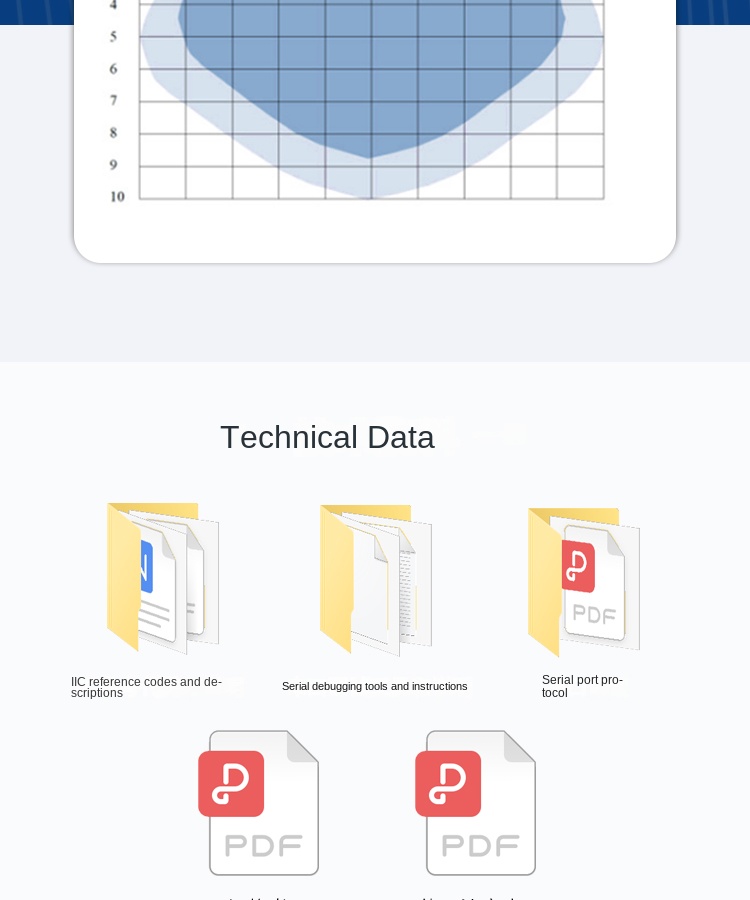

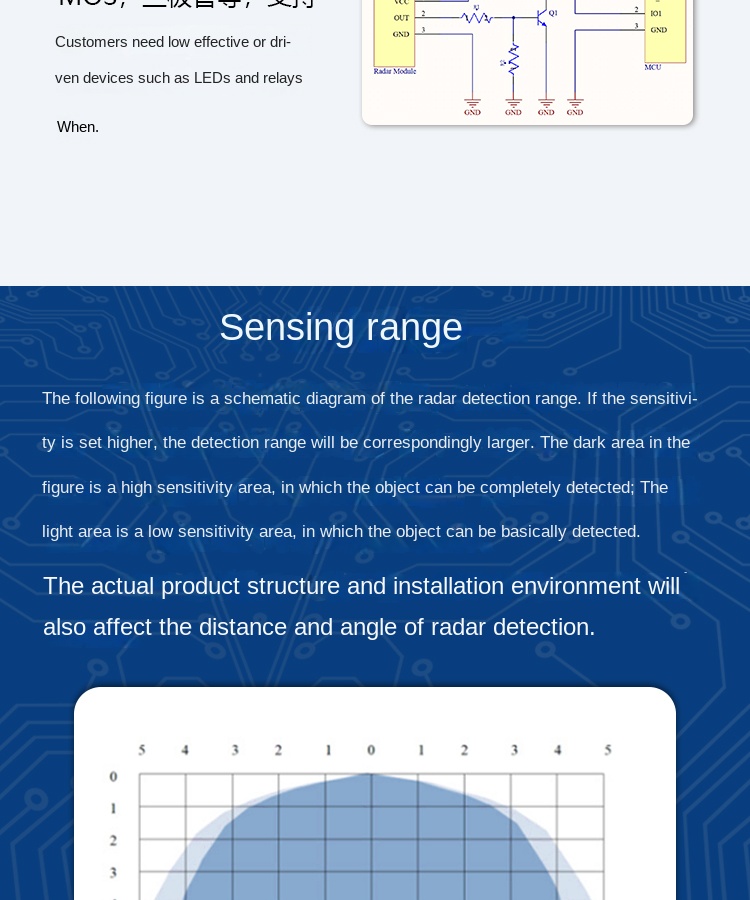

	Sensing distance	Hanging height 3 meters, induction radius 4 meters
