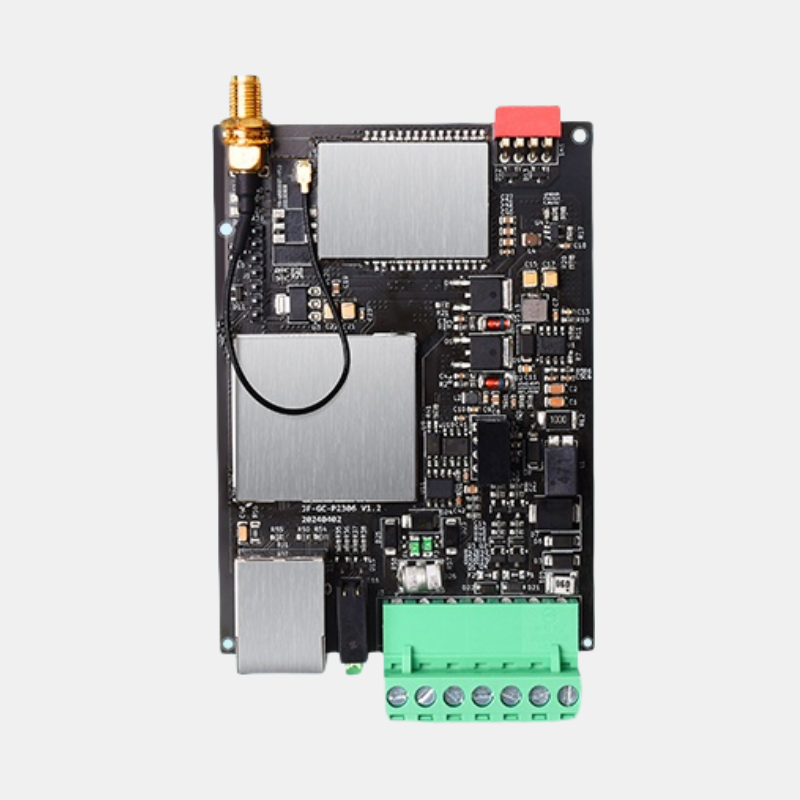

UWB electronic fence base station board GC-P2307
| Model | GC-P2307 |
| Brand | OTOMO |
| Packaging | SMD |
| Origin | Mainland China |
| Communication method | UART |
| Operating frequency | 3900MHz |
| Antenna type | External |
| Applicable scenarios | Mining machine and mining car integrated electronic fence, excavation surface solution |
| Operating voltage | 24V |

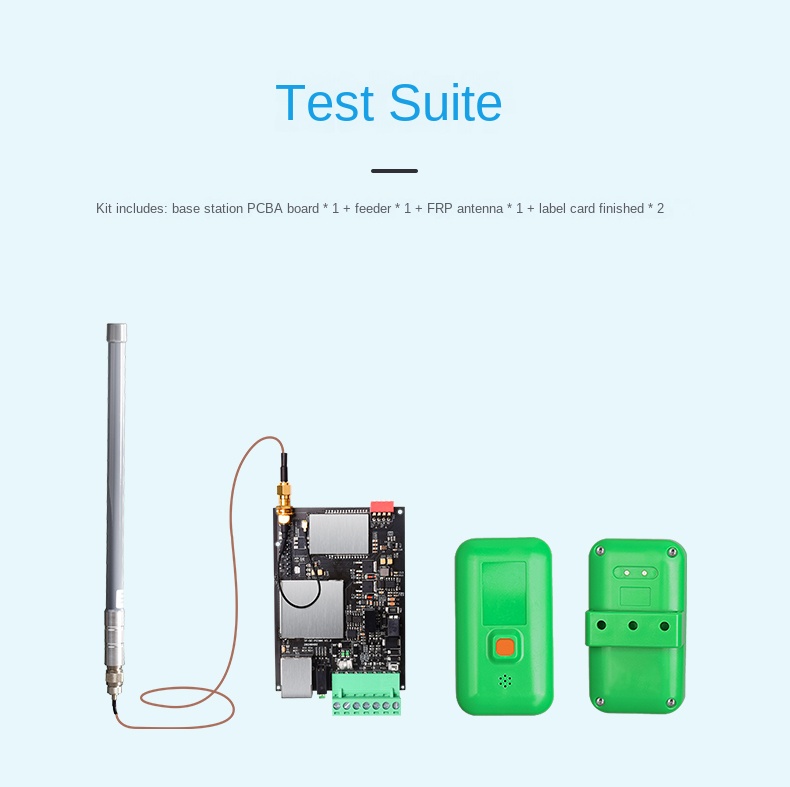

| Color classification | GC-P2307, module + fiberglass antenna + feeder, test kit |
Product description

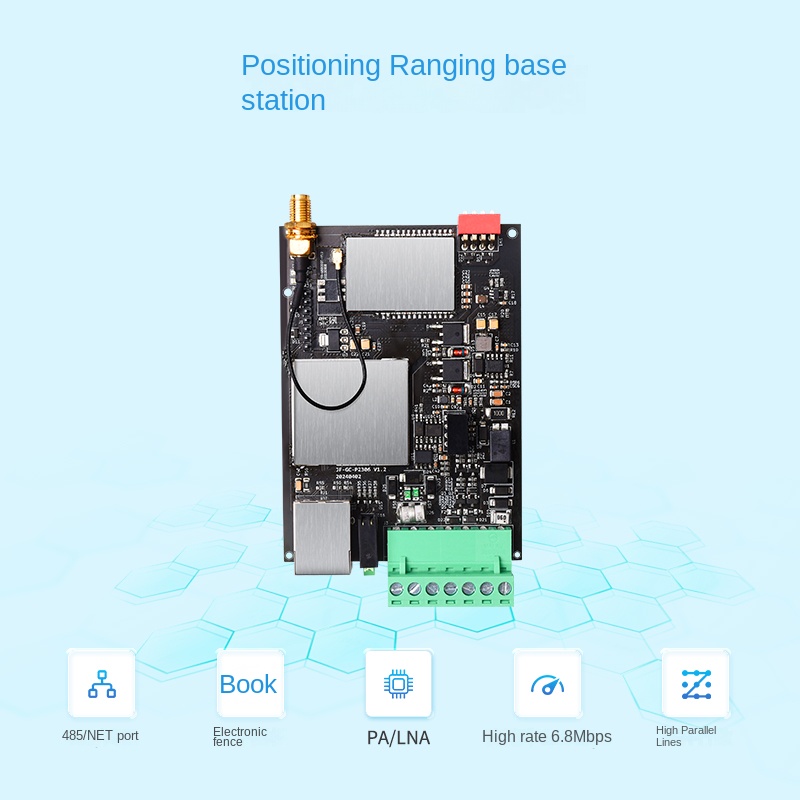

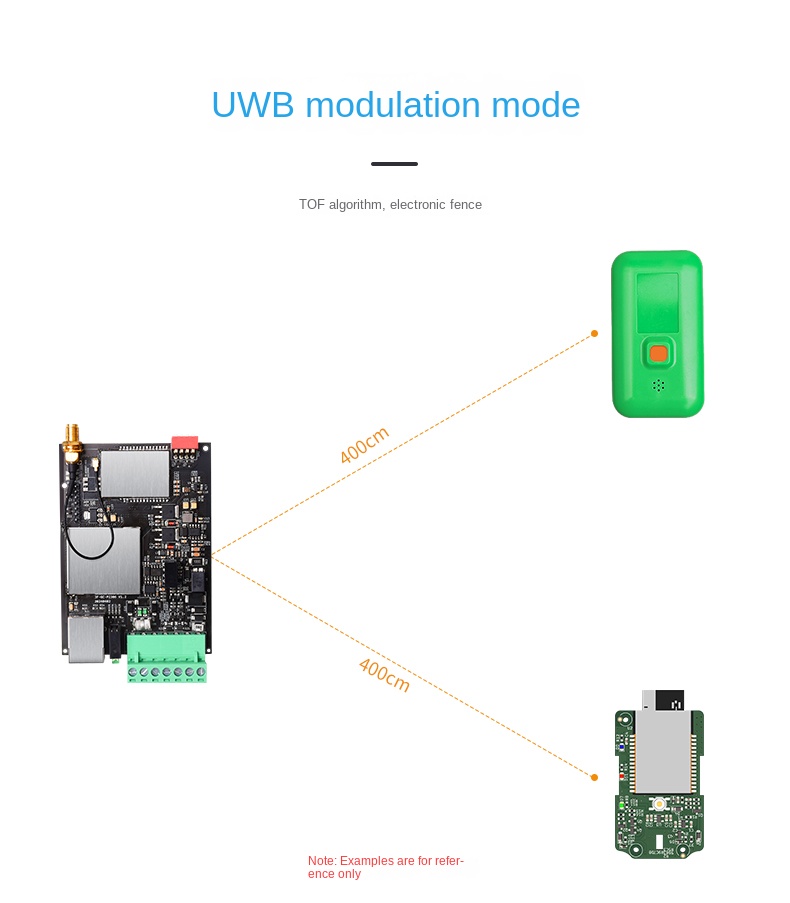

The GC-P2307 UWB Electronic Fence Base Station Board leverages Time-of-Flight (TOF) technology to deliver high-precision positioning and ranging in mining excavation environments. It enables real-time monitoring of mining machinery and mine carts, automatically triggering alerts when equipment crosses preset safety boundaries, enhancing operational safety and preventing accidents.
Designed for easy system integration, the GC-P2307 supports efficient equipment routing and smarter, safer mining operations.

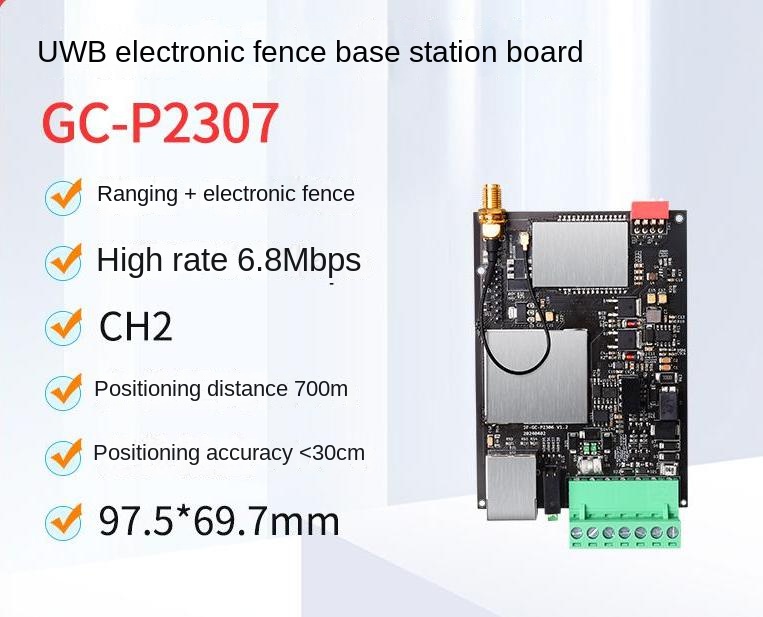

Key Features
Dual Functionality: Combines high-precision ranging and electronic fence capability
High Data Rate: Up to 6.8 Mbps for fast, stable communication
Operating Channel: CH2
Long Positioning Range: Up to 700 meters in mining environments
High Accuracy: Positioning precision within 30 cm

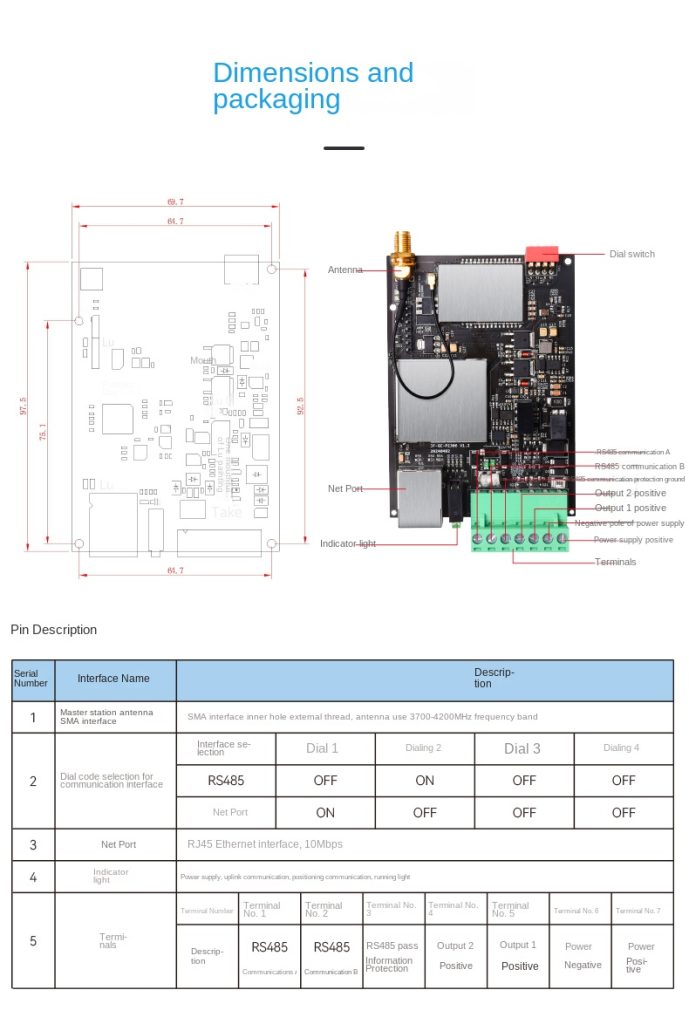

Compact Size: 97.5 × 69.7 mm for flexible installation in constrained spaces
Typical Applications
Mining Excavation: Real-time tracking of mining machinery and vehicles for operational safety
Underground Operations: Automated boundary alarms to prevent unauthorized equipment movement
Tunnel Safety Systems: High-precision positioning in confined and hazardous environments
Industrial Fleet Management: Route optimization and zone-based alerts for heavy-duty vehicles
Hazardous Site Monitoring: Enhances worker safety and protects critical equipment in complex sites

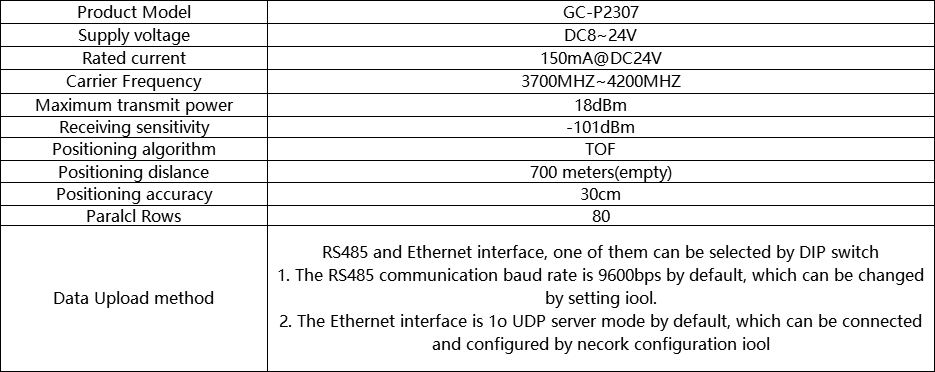

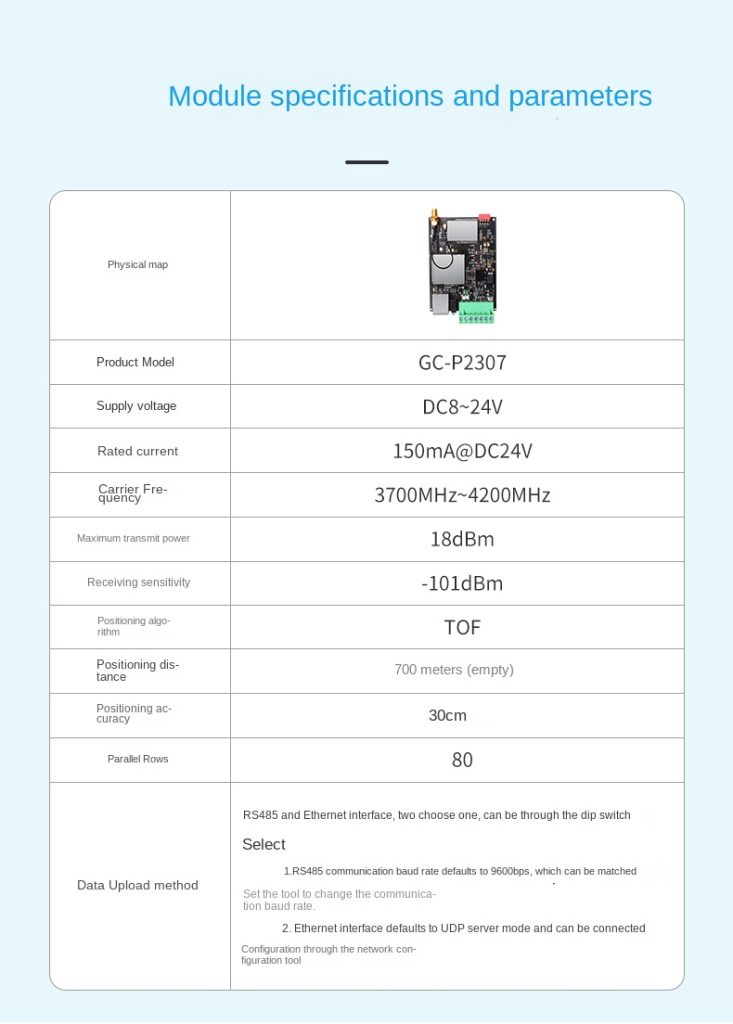

Product Parameters
Product Details：
