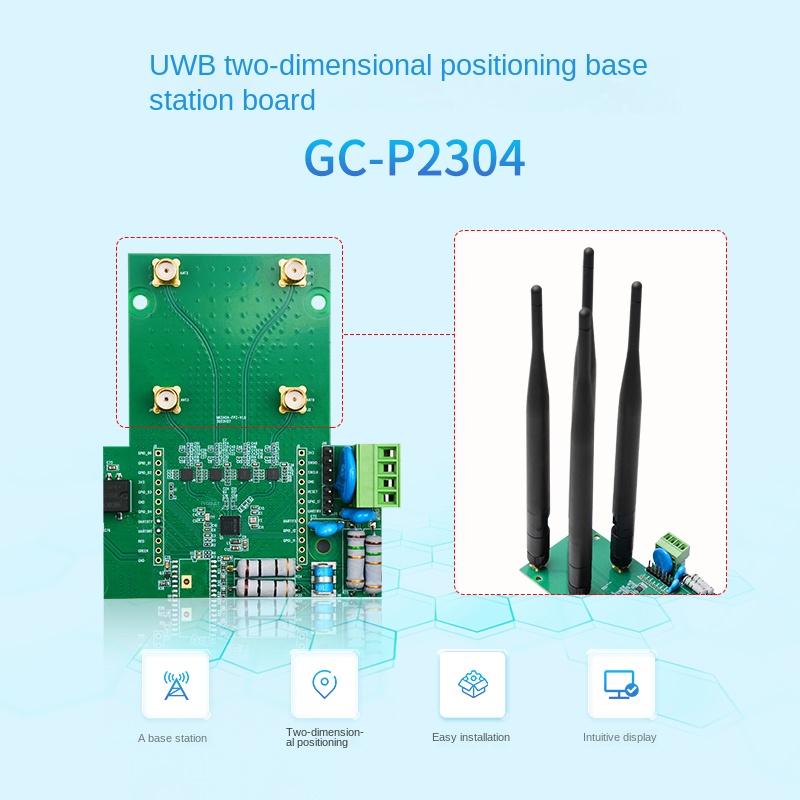

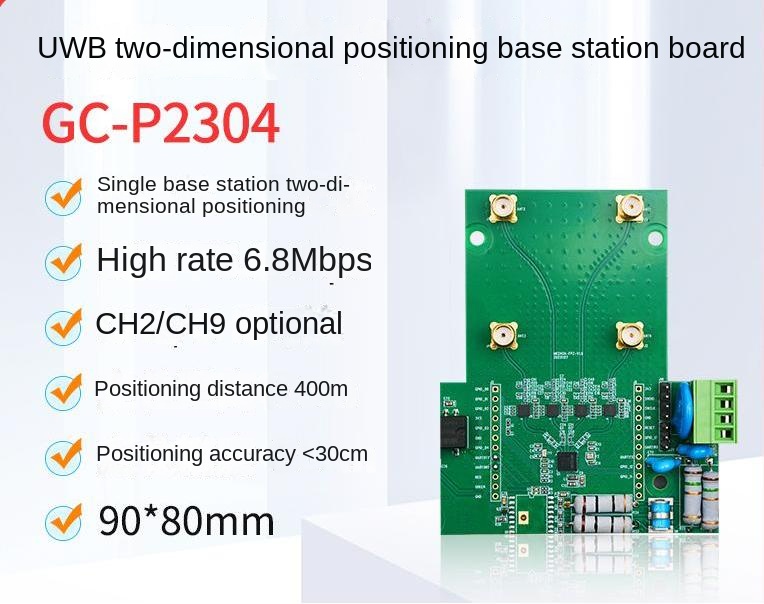

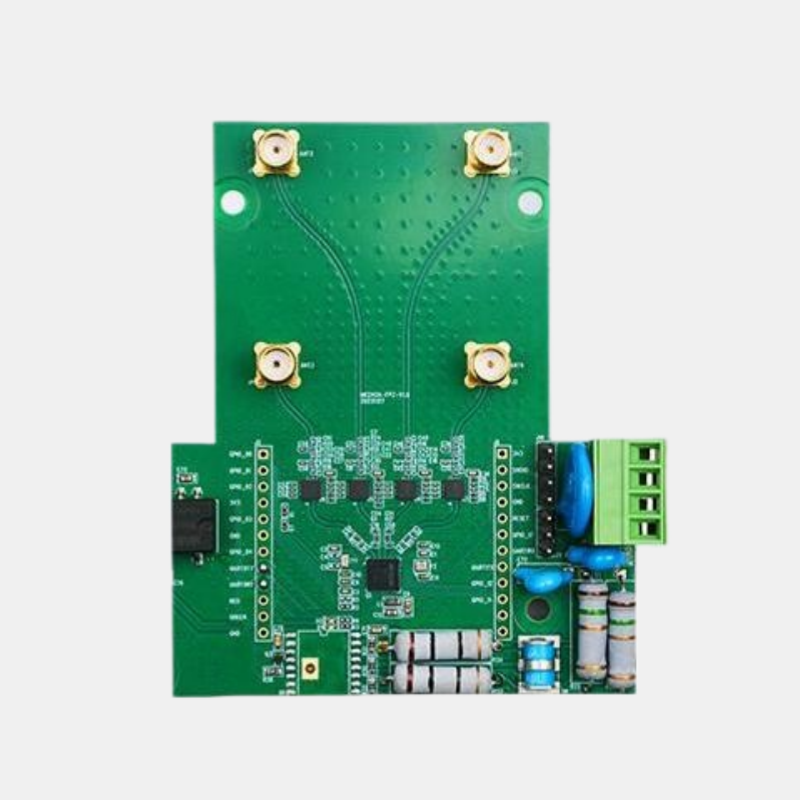

UWB 2D positioning base station board GC-P2304
-
Single-base 2D positioning with high accuracy and easy deployment
-
6.8 Mbps high-speed, stable data communication
-
Flexible channel options (CH2 / CH9) for network setup
-
Long positioning range up to 400 meters for wide-area use
-
High precision within 30 cm accuracy
-
RS-485 industrial interface for stable connectivity
-

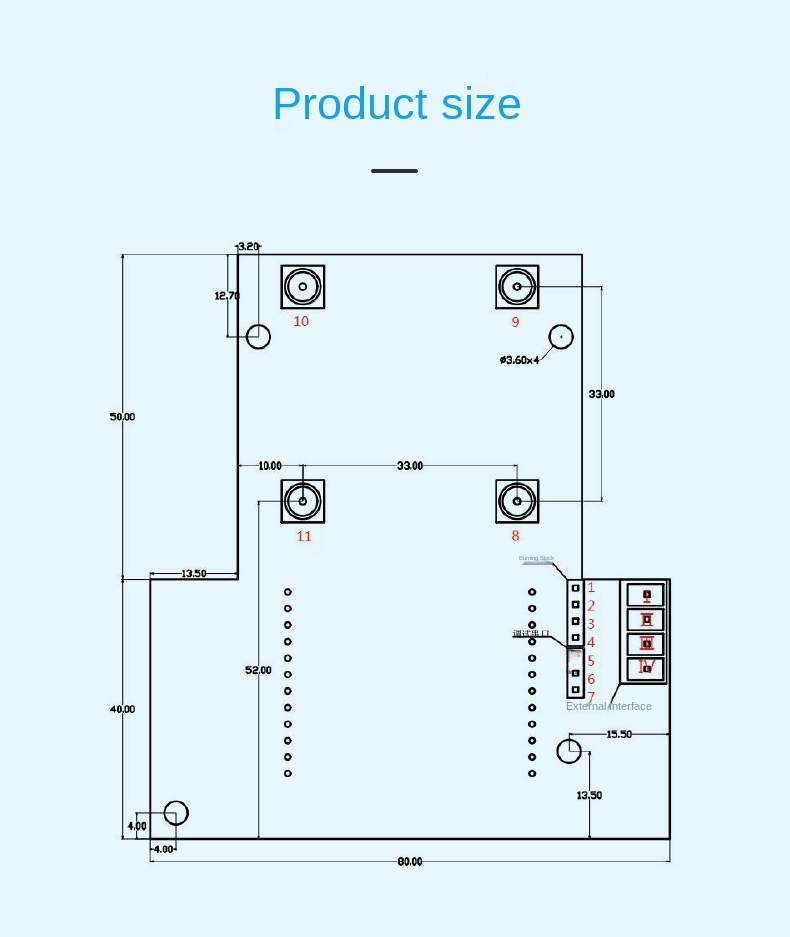

Compact 90 × 80 mm design for tight installation spaces
This module supports customization; please inquire about pricing.
Product description

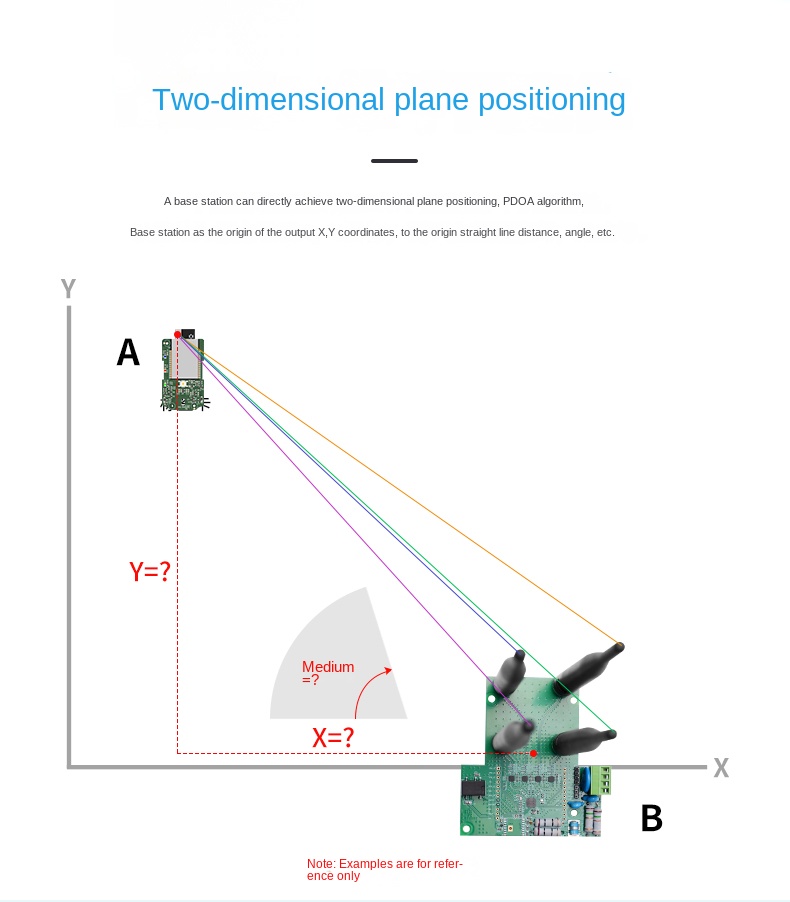

The GC-P2304 enables high-precision, single-base station two-dimensional positioning and ranging for excavation face equipment. Built with domestic UWB chips, it features an RS-485 interface for seamless integration with industrial control systems.
Designed specifically for complex mining environments, the system supports real-time electronic fence monitoring. It accurately tracks equipment location and triggers automatic alarms when boundaries are crossed, enhancing operational safety and preventing asset loss.
Typical Applications
Mining & Tunneling: Real-time tracking of excavation machinery and vehicles
Underground Safety Systems: Automated boundary alarms for unauthorized movements
Industrial Asset Management: Monitoring and control of underground equipment
Hazardous Environment Monitoring: Enhancing safety for personnel and machinery

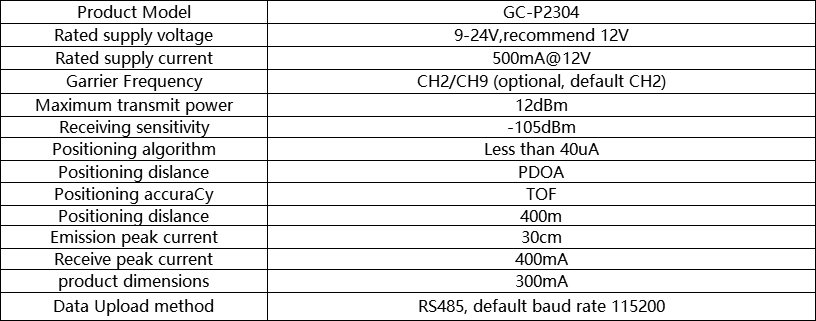

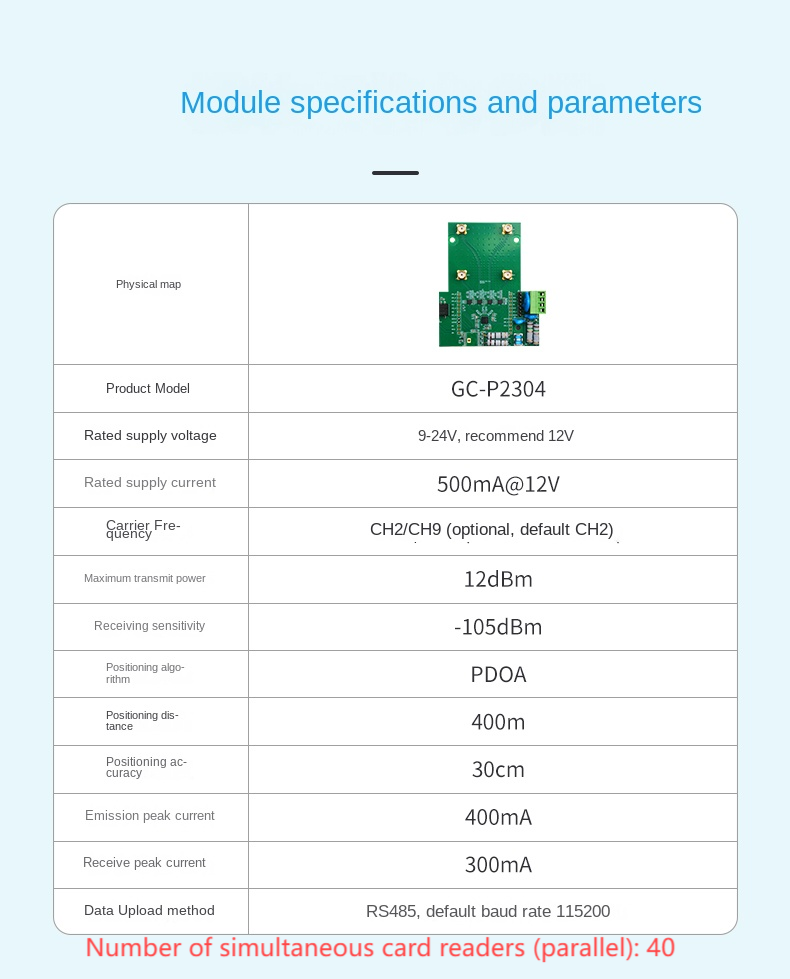

Product Parameters
Product Details：
