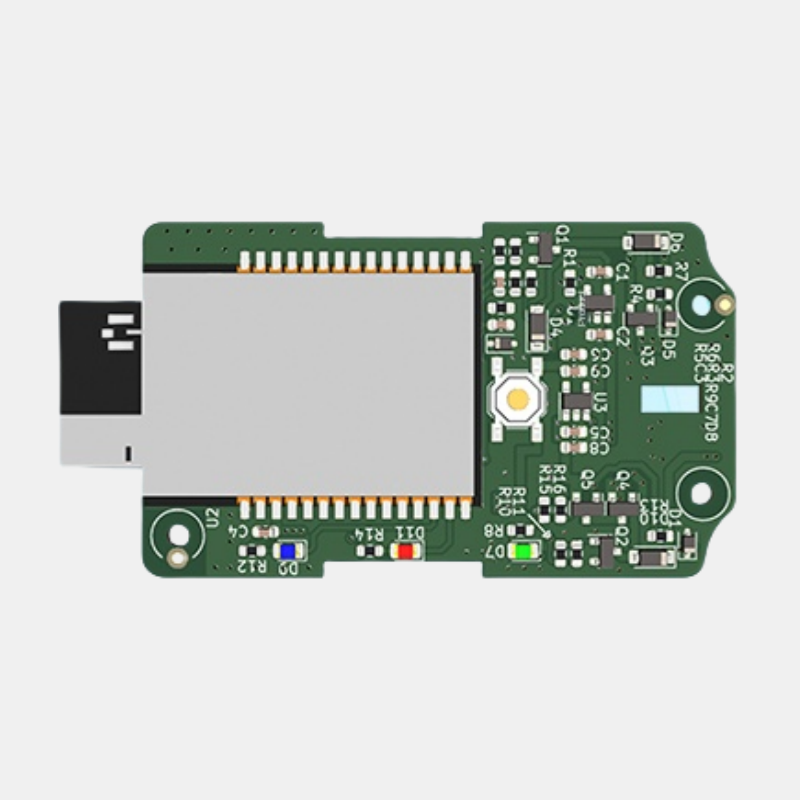

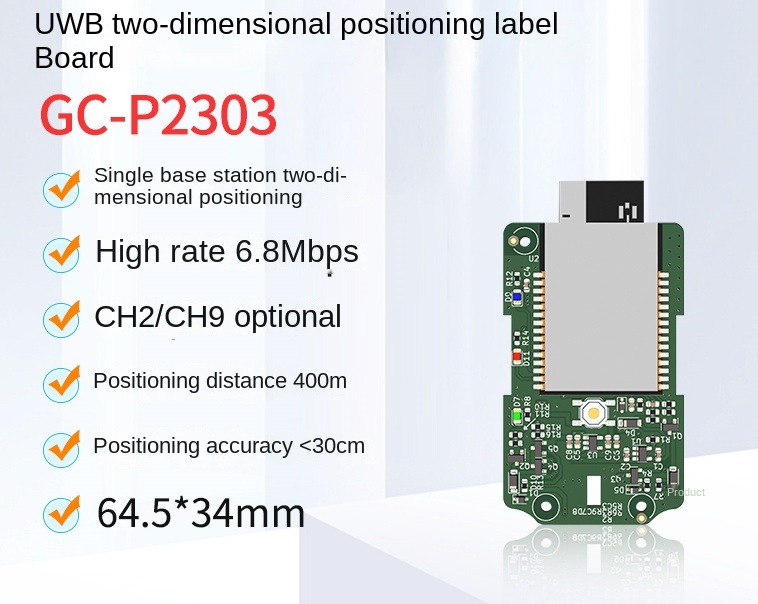

UWB 2D positioning tag board GC-P2303
- Single-base 2D positioning for simplified setup
- 6.8 Mbps high-speed data transfer
- Flexible channel options (CH2 / CH9)
- Positioning range up to 400 meters
- Accuracy better than 30 cm
- Compact 64.5 × 34 mm design
This module supports customization; please contact us for pricing information.
Product description
The GC-P2303 is a compact surface-mount UWB module designed for single-base-station electronic fence solutions. Equipped with UART communication and an external antenna interface, it enables precise 2D positioning using UWB technology.
Ideal for excavation faces and industrial sites, the GC-P2303 supports real-time tracking of personnel and equipment with high accuracy and minimal errors. Its easy integration and deployment make it a reliable, cost-effective choice for advanced positioning applications.
Key Features

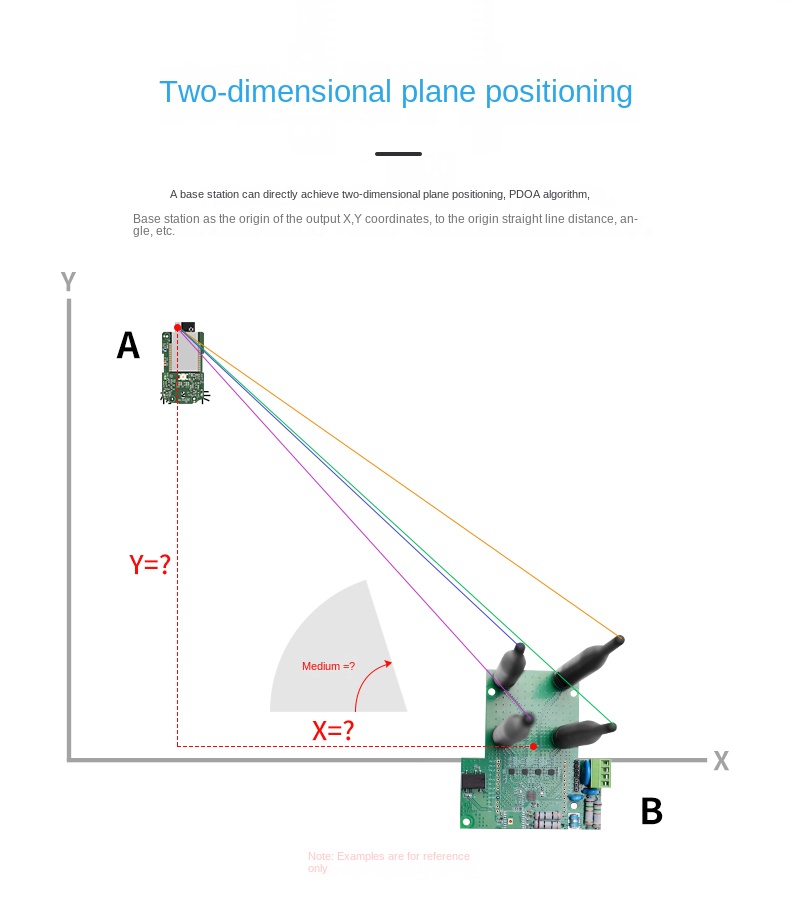

Single-base-station 2D positioning
High-speed data transfer at 6.8 Mbps
Selectable channels: CH2 / CH9
Positioning range up to 400 meters
Positioning accuracy better than 30 cm

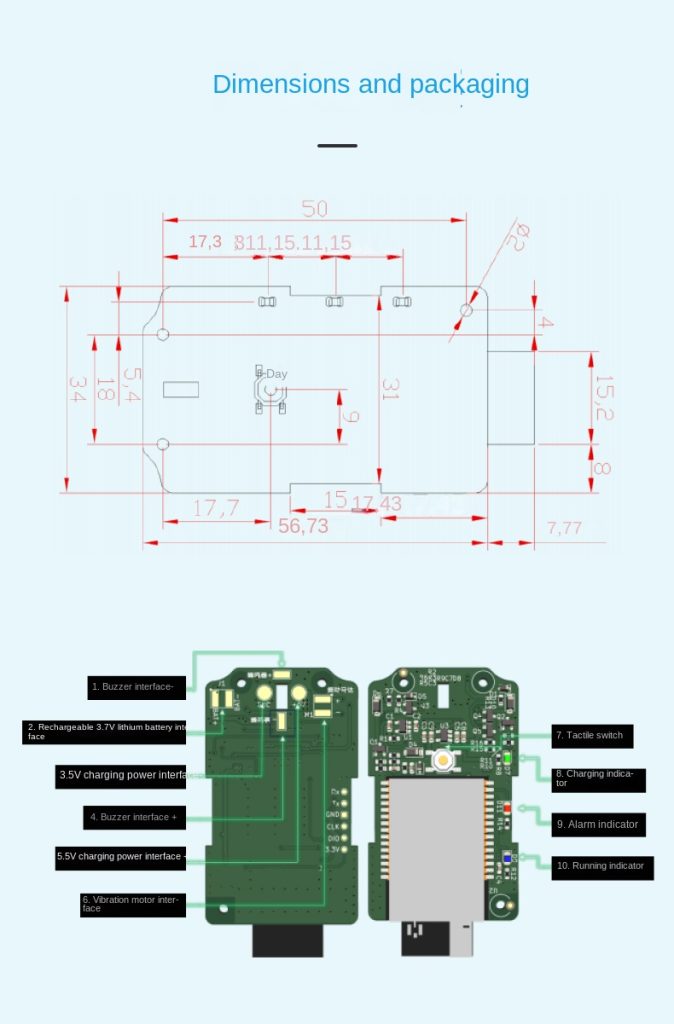

Compact size: 64.5 × 34 mm
Typical Applications
Personnel and equipment tracking on excavation faces
Electronic fence monitoring in industrial environments
Real-time location alerts and safety management
Cost-effective solution for innovative positioning systems

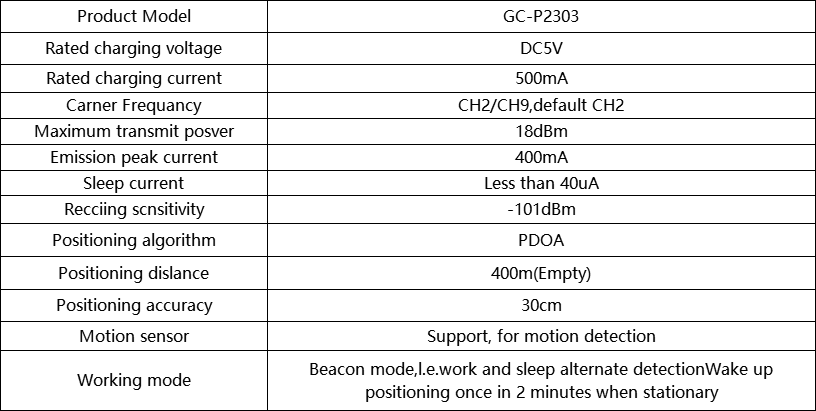

Product Parameters
Product Details：
