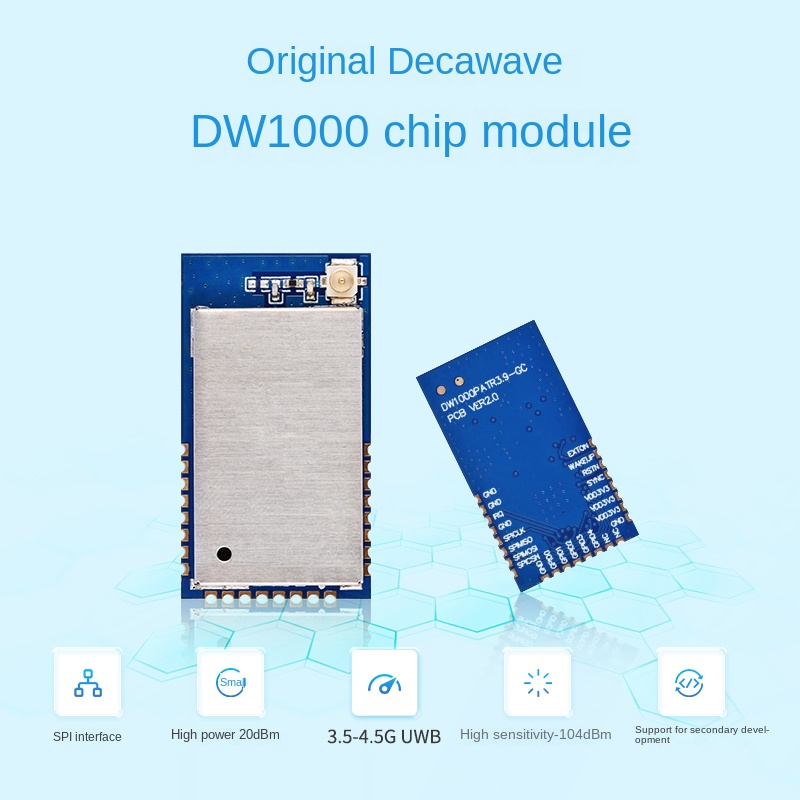

UWB ranging and positioning module DW1000PA+LNA
| Model | DW1000PA/LNA |
| Brand | OTOMO |
| Origin | Mainland China |
| Antenna type | External |
| Applicable scenarios | Wireless positioning and ranging applications |
| Packaging method | Patch |

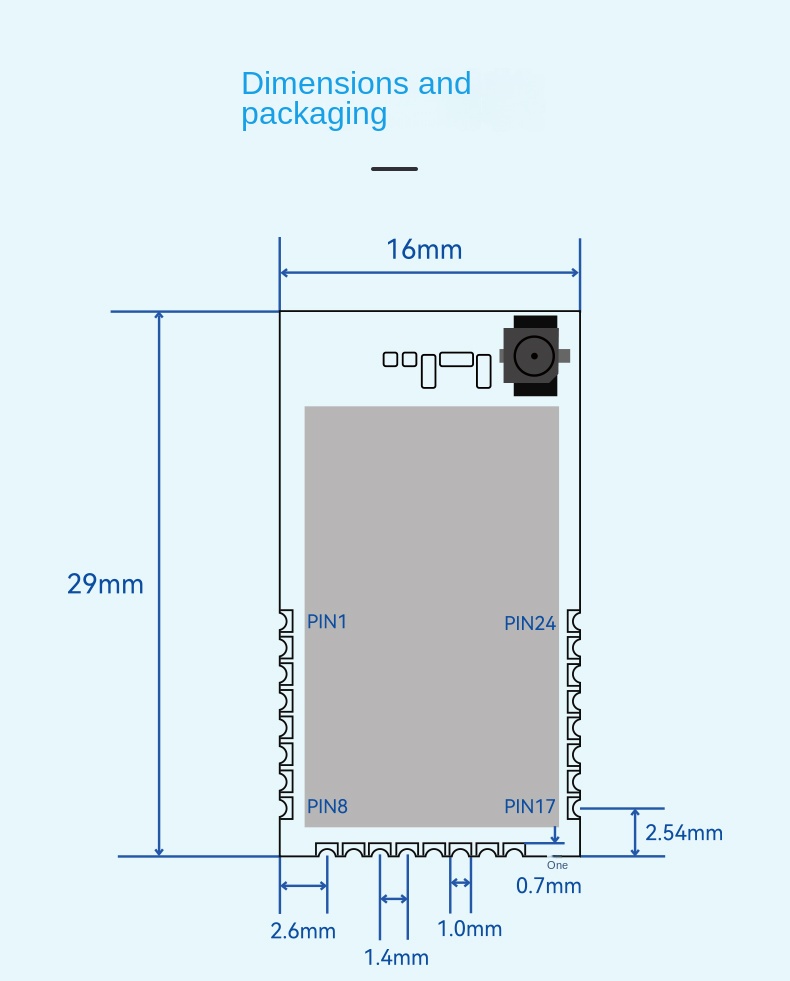

| Size | 28x16x3mm |
| Operating frequency | 3900MHz |
| Operating voltage | 3.3V |
| Communication method | SPI |
Product description

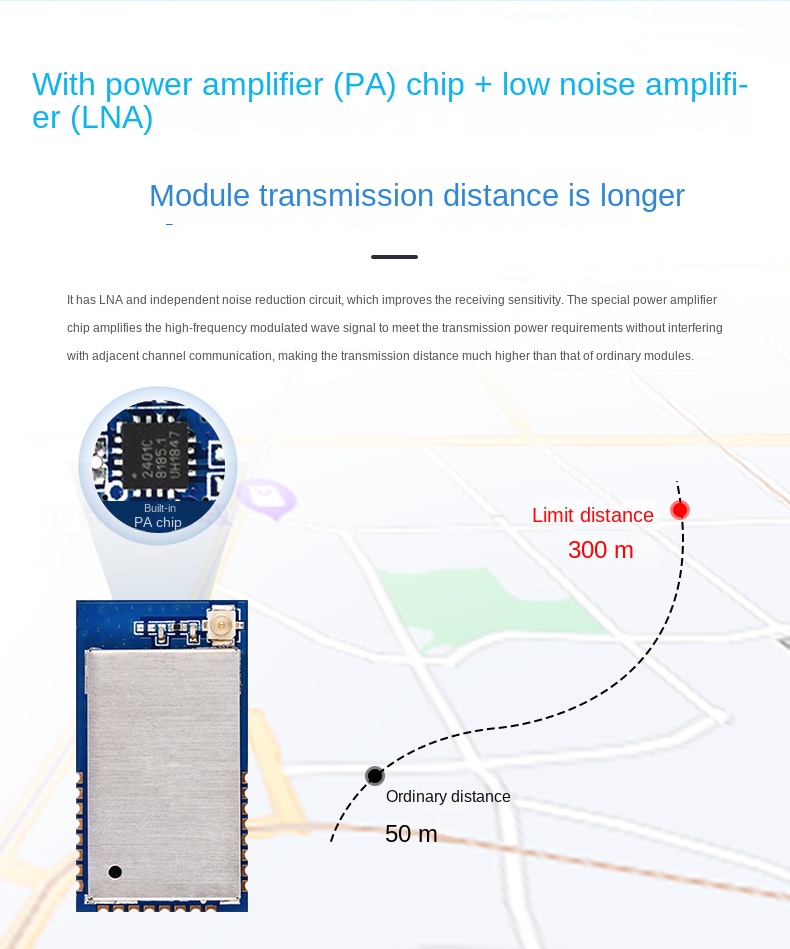

This UWB module integrates the DW1000PA chip with a Low Noise Amplifier (LNA) to deliver centimeter-level accuracy for personnel tracking in coal mines. The DW1000PA ensures precise distance measurement, while the LNA enhances signal strength and stability in harsh underground environments. This solution enables real-time monitoring, improves emergency response capabilities, and boosts safety and operational efficiency in mining applications.
Key Features
Frequency Range: 3.5–4.5 GHz
SPI Interface for easy MCU integration
High Sensitivity: -104 dBm
Maximum Transmit Power: 20 dBm
Positioning Distance: Up to 300 meters
Compact Size: 29 × 16 mm
Typical Applications
Real-time personnel tracking in coal mines
Emergency response and safety management
Monitoring in harsh, obstructed underground environments

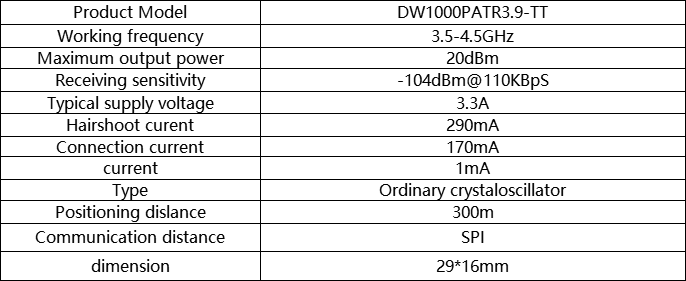

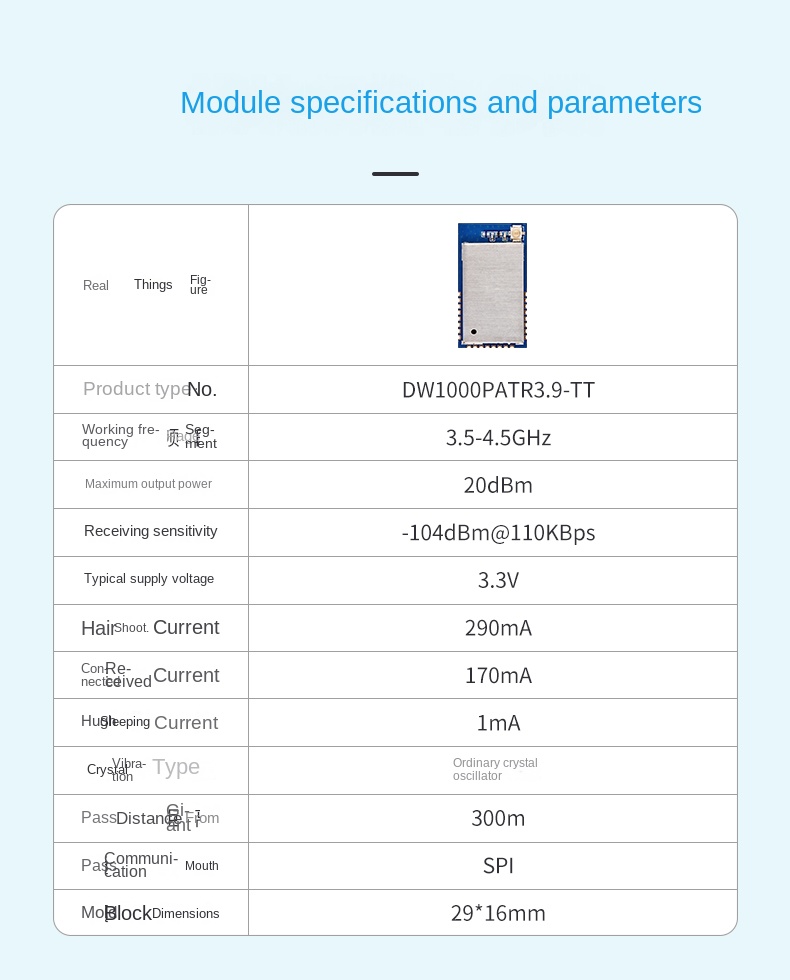

Product Parameters
Product Details：
