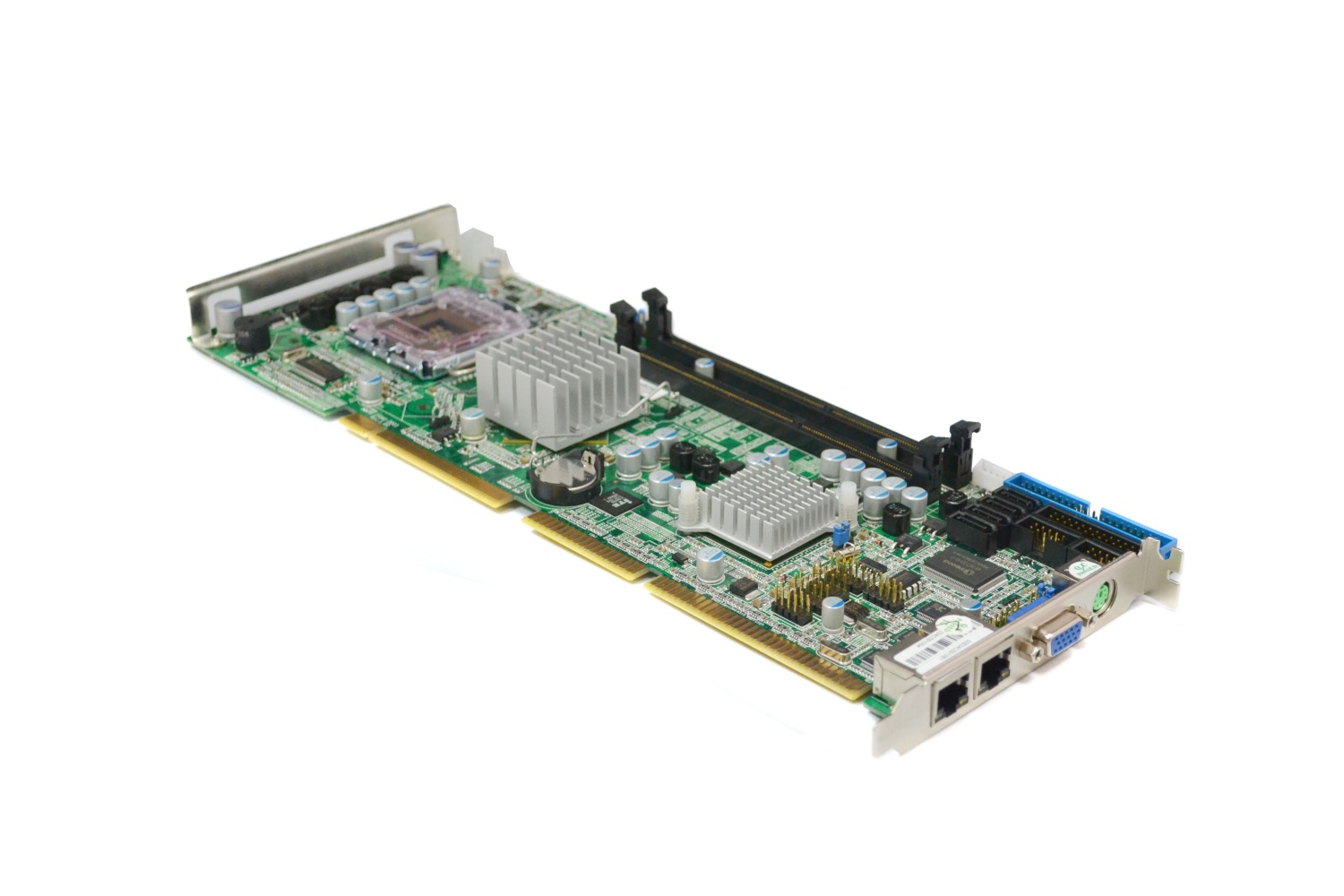

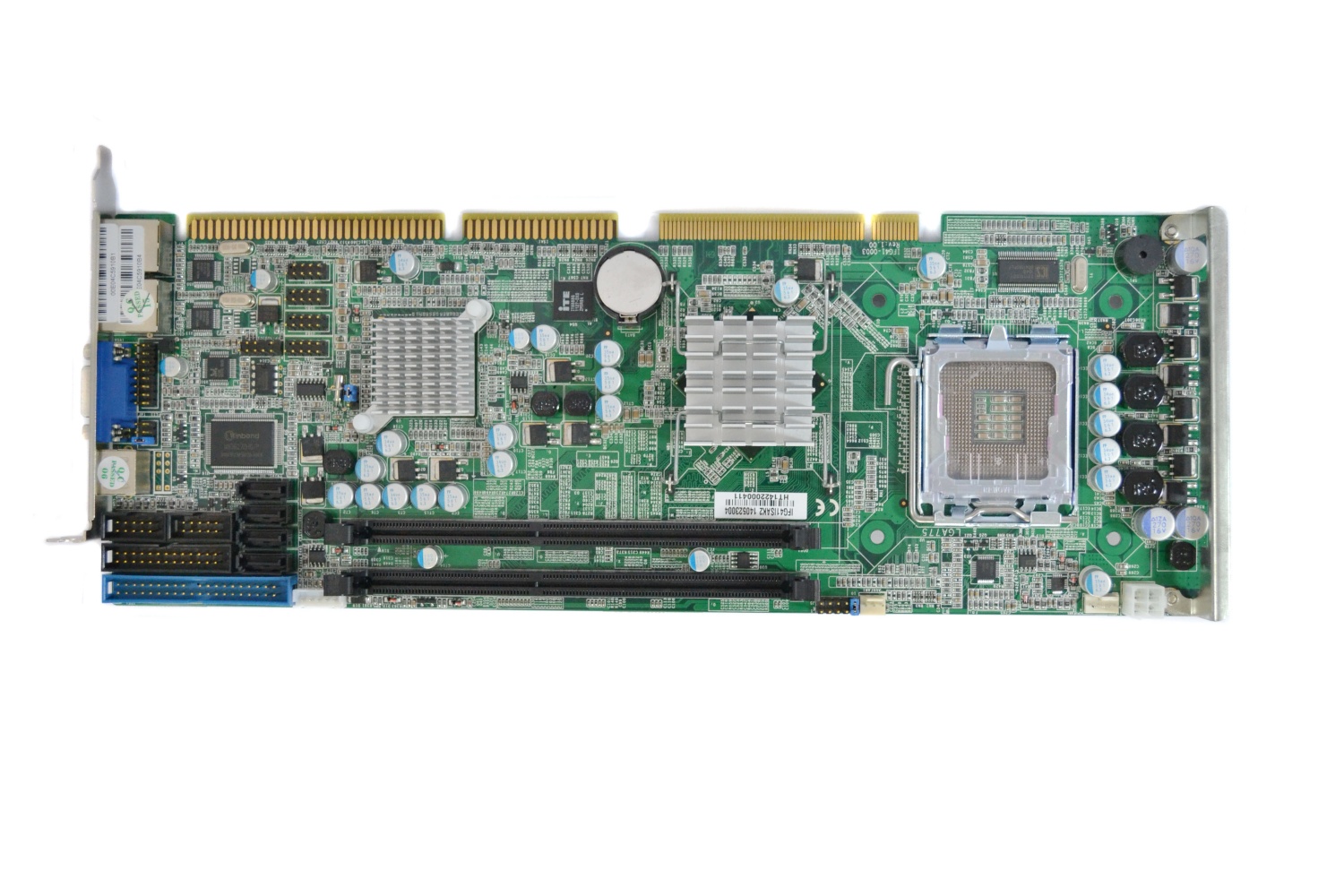

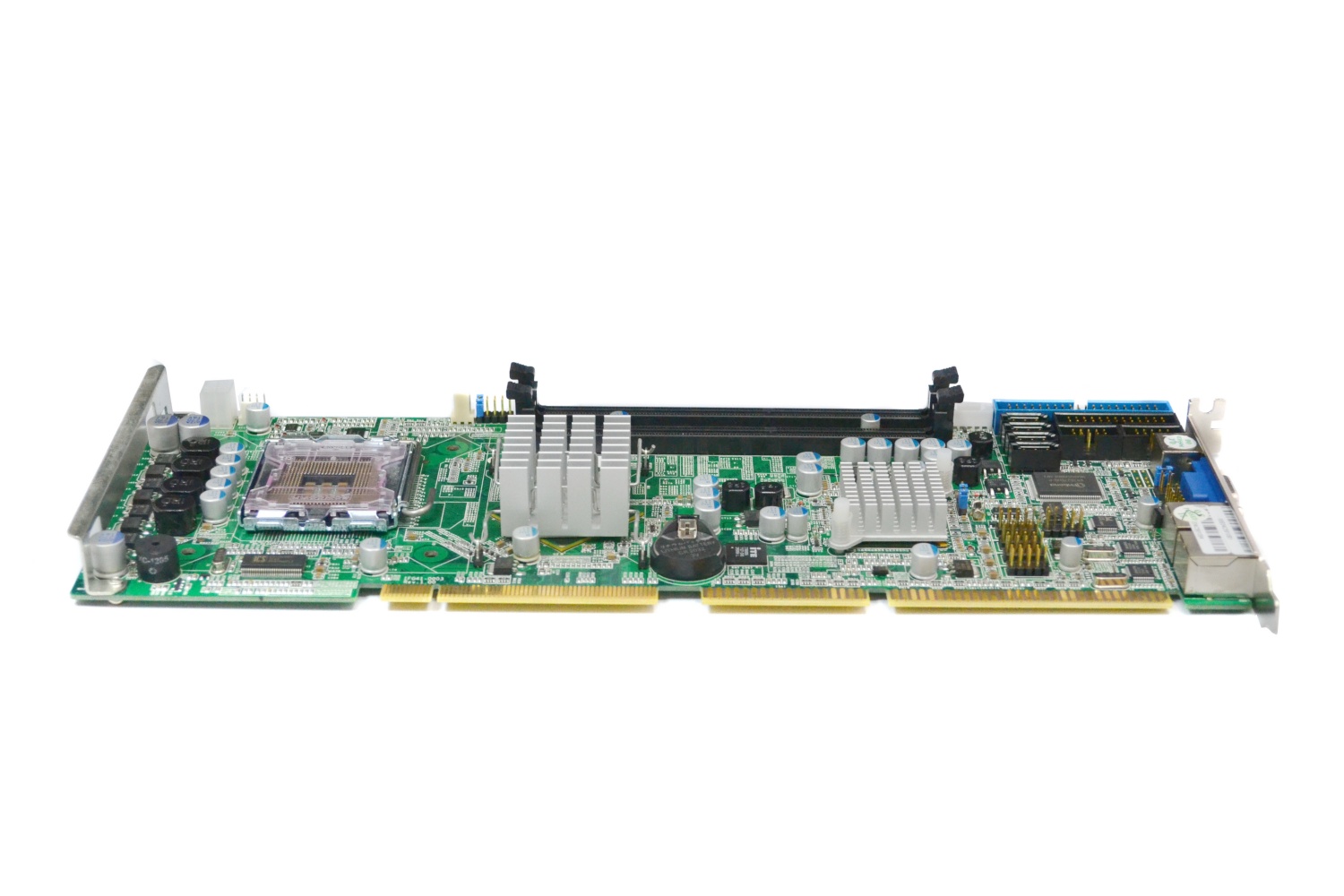

IFG41ISA
- Adopts the long card 1.0 specification with baseboard architecture.
- Supports up to 4 PCI and 8 ISA expansion slots for versatile upgrades.
- Features 2 Gigabit RJ45 Ethernet ports for fast networking.
- Includes 2 RS232 serial ports (COM2 supports RS232/422/485) and 1 LPT parallel port.
- Offers up to 4 SATA interfaces (3 GB/s) with RAID0/1 and a 256-level programmable watchdog for stable, reliable storage.
- Compatible with mainstream and embedded OS, including Windows XP, Windows XP Embedded, Windows 2000, and Linux.
Product description
IFG41 series motherboards use the Intel G41+ICH7R chipset, comply with the PICMG 1.0 bus specification, support the Intel Socket 775 CPU, and can support Pentium HT, Core 2 Duo, and Core 2 Quad processors. They can expand with 4 PCI and 8 ISA expansion slots. They have the best cost performance and long delivery cycle and are widely used in process control, industrial automation, inspection and testing, and other fields.
Product Parameters
| Chipset | IntelG41+ICH7R |
| Processor | IntelSocket775 CPU, supports Pentium HT, Core2 Duo, Core 2 Quadprocessors |
| Expansion slots | 4 PCl and eight lSA,1 LPT parallel port,4 SATA hard disk interfaces with a maximum data transfer speed of 3GB/S, supporting RAID0,1.disk |
| Memory | 2 240-pin DDRlll slots, memory can support up to 4GB |
| Display interface | 1 VGA interface |
| Audio | supports 1*MIC-in,1*Line-out |
| LAN | 2 Gigabit network cards (RTL8111DL), RJ45 Ethernet port |
| Memory interface | 1 IDE (supports UltraDMA/33/66/100MB/Sec),4 SATA interfaces, support RAID function |
| Serial port | 2 RS232 serial ports, ofwhich COM2 can support RS232/422/485LPT 1,USB 8USB2.0,PS2 1 PS2 interface, support PS2KB/MS |
| Expansion bus | Compliant with the PlCMG 1.0 specification and provides PCl and lSA expansion. The motherboard supports up to 12 PCI slots (requires a matching baseboard). The motherboard supports baseboard expansion of multiple PCI slots (requires a matching baseboard). Motherboard supports lSA, adapter chip is ITE8888 |
| Watchdog | 255 levels, programmable seconds/minutes, timeout interrupt, or system reset, power supply supports ATX power management mode, supports automatic power on when AC is powered on |
| Dimensions | 338mm(L)x122mm(W) |
| Working environment | -20~60℃C 10~95%@40°C(no condensation)Storage environment -20~70°10~95%@40’C(no condensation) |
| OS | Support WinXP, Win7/8/10 |
Product Features
1. Adopts long card 1.0 specification + baseboard architecture
2. Supports up to 4 PCI expansion slots and 8 ISA expansion slots
3. 2 1000MB RJ45 Ethernet ports
4. 2 RS232 serial ports, COM2 supports RS232/422/485 serial ports, 1 LPT parallel port
5. To meet the requirements of large amounts of data storage, it is equipped with up to 4 SATA hard disk interfaces with a maximum data transmission speed of 3GB/S and supports RAID0,1. Disk array 256-level programmable watchdog function to ensure system stability and reliability. Compatible with mainstream operating systems and embedded operating systems such as Windows®XP, Windows®XP Embedded, Windows®2000, and Linux
Application Areas
It is widely used in process control, industrial automation, inspection and testing, and other fields. With its powerful performance, rich expansion capabilities, and strong environmental adaptability, this motherboard can meet the diverse needs of industrial computers in these fields. For example, industrial automation production lines can be used to control equipment operations, collect and transmit data, etc.; inspection and testing equipment can process and analyze test data and perform other functions. At the same time, its long supply cycle and high cost-effectiveness also ensure the long-term, stable use of related industries.
