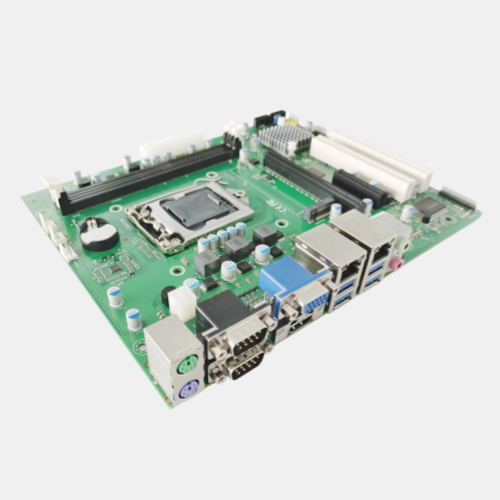

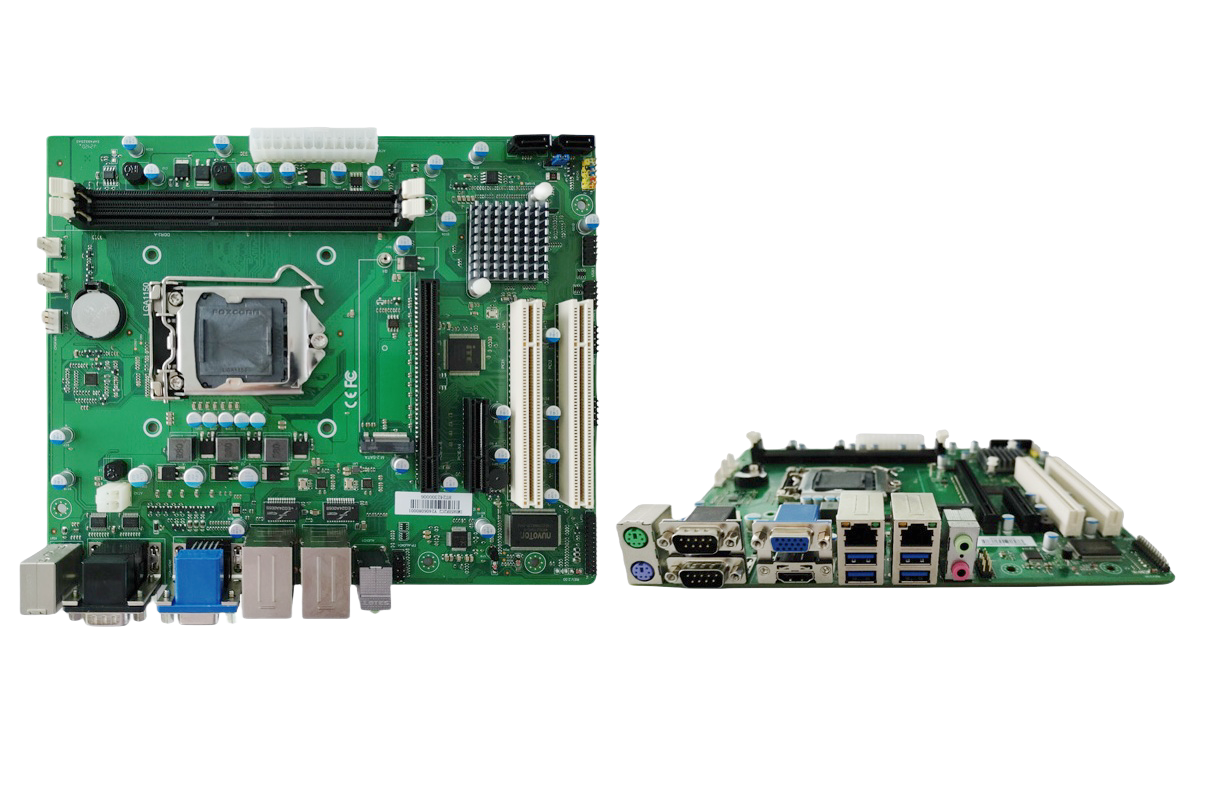

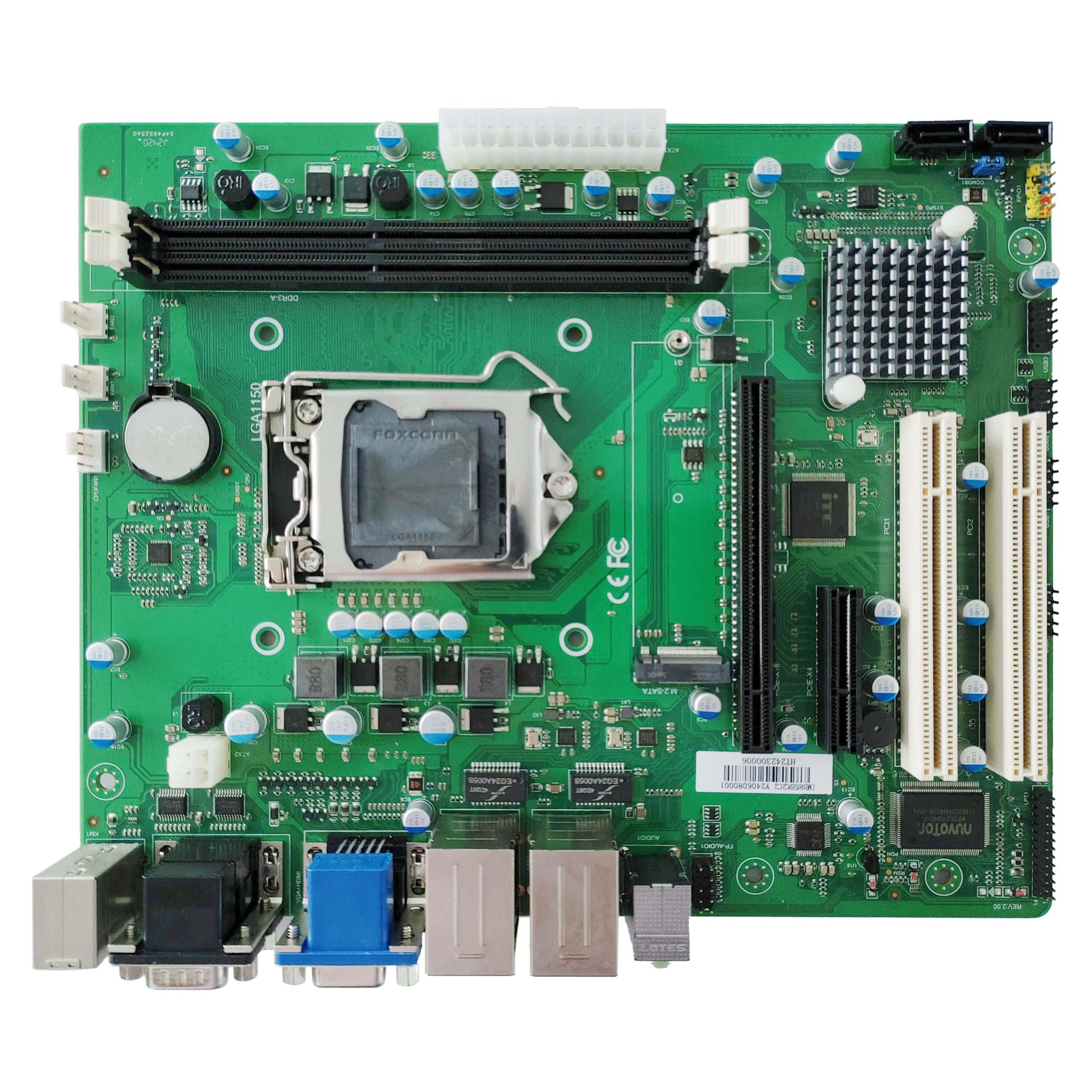

This industrial-grade motherboard uses the Intel LGA1150 socket and supports 4th-generation Intel i3/i5/i7 processors. It offers stable performance, flexible expansion, and strong system compatibility, making it suitable for a wide range of applications. Its extensive I/O ports, multiple display options, and reliable power supply ensure smooth operation in offices, homes, servers, and industrial environments. Its wide operating temperature range and compact size also provide high installation flexibility.

Key Features

1.Supports 4th-generation Intel i3/i5/i7 processors to meet diverse performance needs.

2. Equipped with two DDR3 slots supporting up to 16GB of RAM, it enables efficient multitasking.

3 . One HDMI port and one VGA port enable simultaneous or asynchronous display across multiple devices.

4. Two SATA 3.0 slots and one M.2 (SATA) slot provide flexible storage expansion.

5.It features two PCI slots, one PCIe x16 slot, and one PCIe x4 slot, accommodating graphics cards, audio cards, and other add-in cards.

6.It supports Windows 7, Windows 10, and Linux, meeting the diverse system requirements of these operating systems.

7. The ATX 24-pin + 4-pin connectors ensure a reliable and stable power supply.

8 . With a storage temperature range of -20°C to 70°C and an operating temperature range of -20°C to 60°C, it is suitable for a variety of environments.

9. Compact size – 232mm x 195mm – easily fits into various chassis.

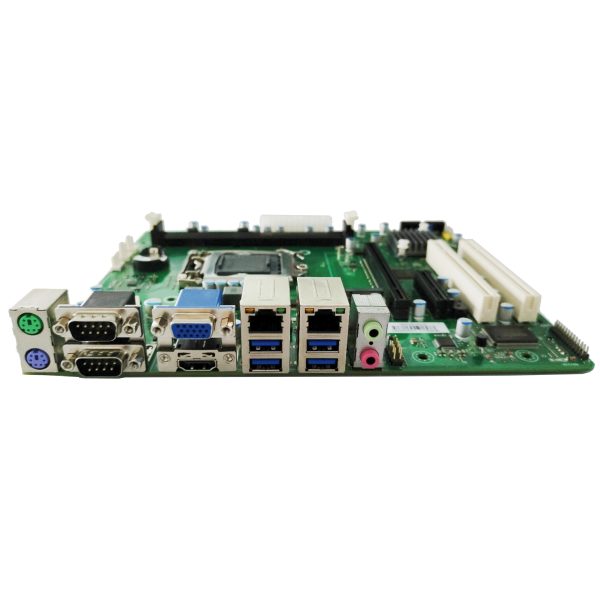

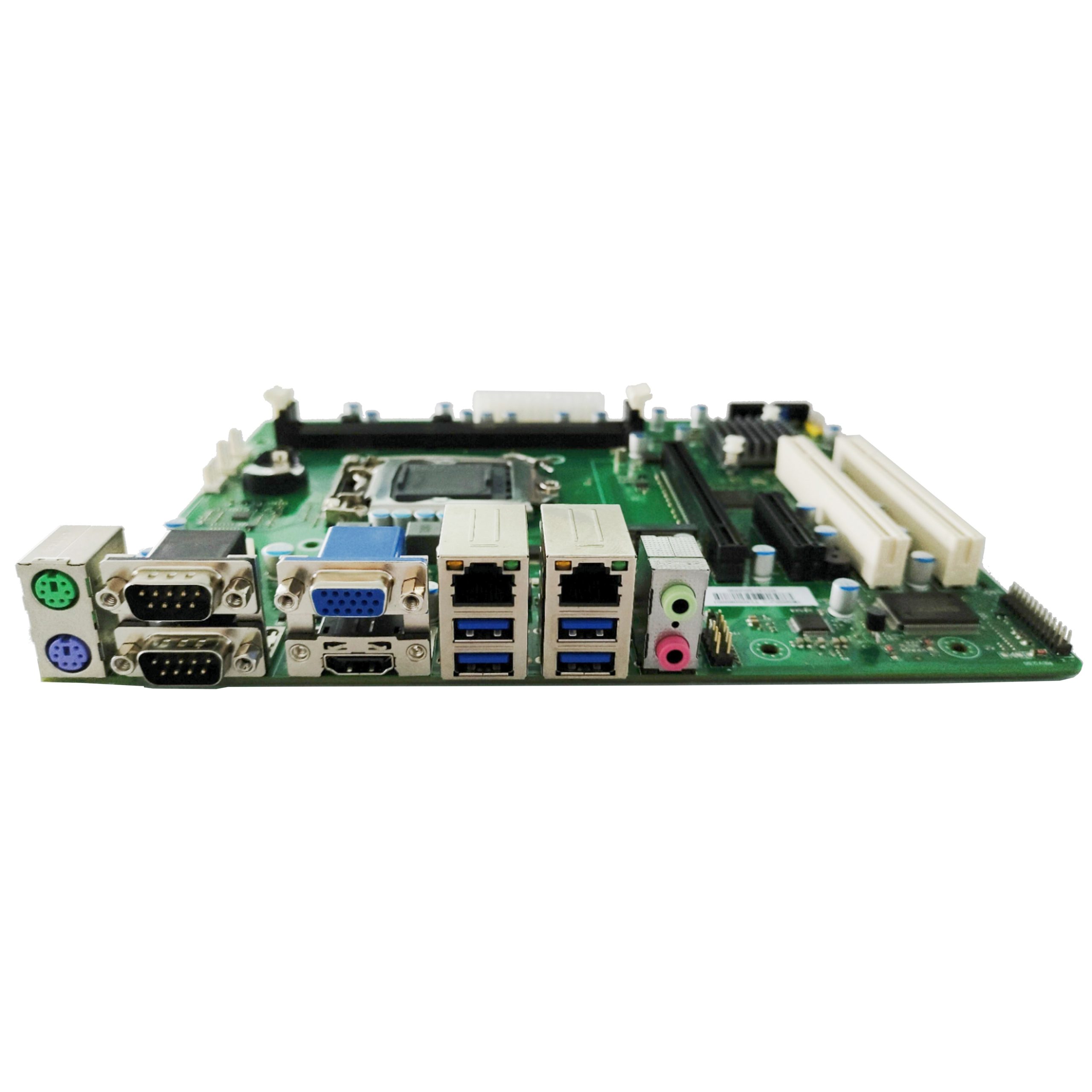

10 . Comprehensive I/O ports – HDMI, VGA, two PS/2 ports, 22 COM ports (RS232 only), two USB 3.0 ports, two USB 2.0 ports, two LAN ports (RT8111HS), an audio port, and more.

11. Internal I/O – 2 SATA 3.0 ports, 1 M.2 (SATA), 8 USB 2.0 ports, F_AUDIO, CPUFAN, SYSFAN, FP, LP, and other ports for internal expansion.

12  . Practical Accessories – The standard configuration includes a motherboard, I/O shield, SATA cables, and an optional CPU, cooler, and memory.

Applications

Office PC: Its extensive interface and stable compatibility make it an ideal choice for connecting to printers, scanners, projectors, and running office applications.

Home Entertainment: Its support for multiple operating systems and display outputs ensures reliable performance, making it suitable for TV connection, gaming, and multimedia playback.

Small Server: Its scalability and stable operation make it suitable for use as a file server, mail server, or as a node in a small business network.

Industrial Control: Its wide temperature range and rich I/O interfaces make it suitable for deployment in automation terminals, data acquisition, and control systems.
